910-00011-IT

Active

Kyocera SLD Laser

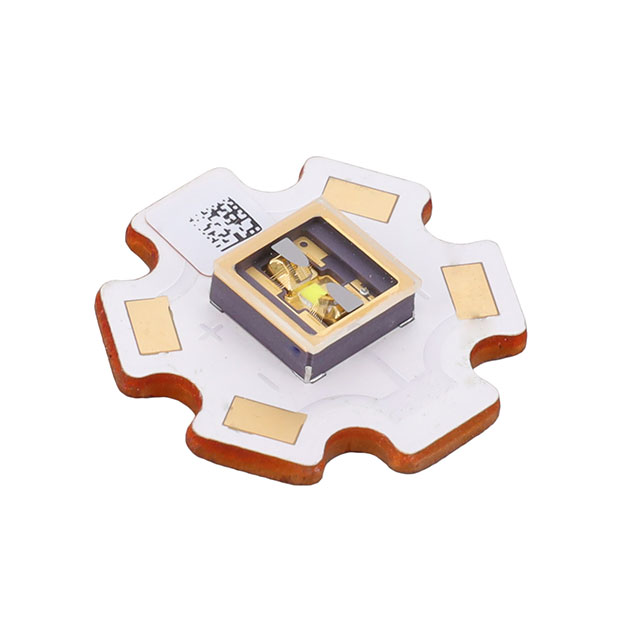

LED COOL WHITE 6000K STAR ARRAY

Search across all available documentation for this part.

Active

Kyocera SLD Laser

LED COOL WHITE 6000K STAR ARRAY

Technical Specifications

Parameters and characteristics for this part

Part	CCT (K)	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Color	Viewing Angle	Voltage - Forward (Vf) (Typ)	Flux @ 25°C, Current - Test	CRI (Color Rendering Index)	Current - Max [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Supplier Device Package	Current - Test	Current - Max	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case
Kyocera SLD Laser 910-00010-WF	6000 K	Surface Mount	0.1 in	2.53 mm	Cool White	120 °	8.3 V	1000 lm	70	2.5 A	7 mm	0.276 in	0.276 "	7 mm	4-SMD	2.5 A
Kyocera SLD Laser 910-00016-WF	6000 K	Surface Mount	0.1 in	2.53 mm	Cool White	120 °	1.8 V 5 V	500 lm	70		7 mm	0.276 in	0.276 "	7 mm	4-SMD		1 A 2.3 A
Kyocera SLD Laser 910-00004-IT	6000 K	Surface Mount	0.1 in	2.53 mm	Cool White	120 °	8.7 V	500 lm	70	1.65 A					Star Array	1.65 A		19.9 mm	0.783 "	Star Array
Kyocera SLD Laser 910-00003-WF	6000 K	Surface Mount	0.1 in	2.53 mm	Cool White	120 °	8.7 V	500 lm	70	1.65 A	7 mm	0.276 in	0.276 "	7 mm	4-SMD	1.65 A
Kyocera SLD Laser 910-00011-IT	6000 K	Surface Mount	0.1 in	2.53 mm	Cool White	120 °	8.3 V	1000 lm	70	2.5 A					Star Array	2.5 A		19.9 mm	0.783 "	Star Array
Kyocera SLD Laser 910-00017-IT	6000 K	Surface Mount	0.1 in	2.53 mm	Cool White	120 °	1.8 V 5 V	500 lm	70						Star Array		1 A 2.3 A	19.9 mm	0.783 "	Star Array

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting - White, Cool 6000K 8.3V 2.5A 120° Star Array
