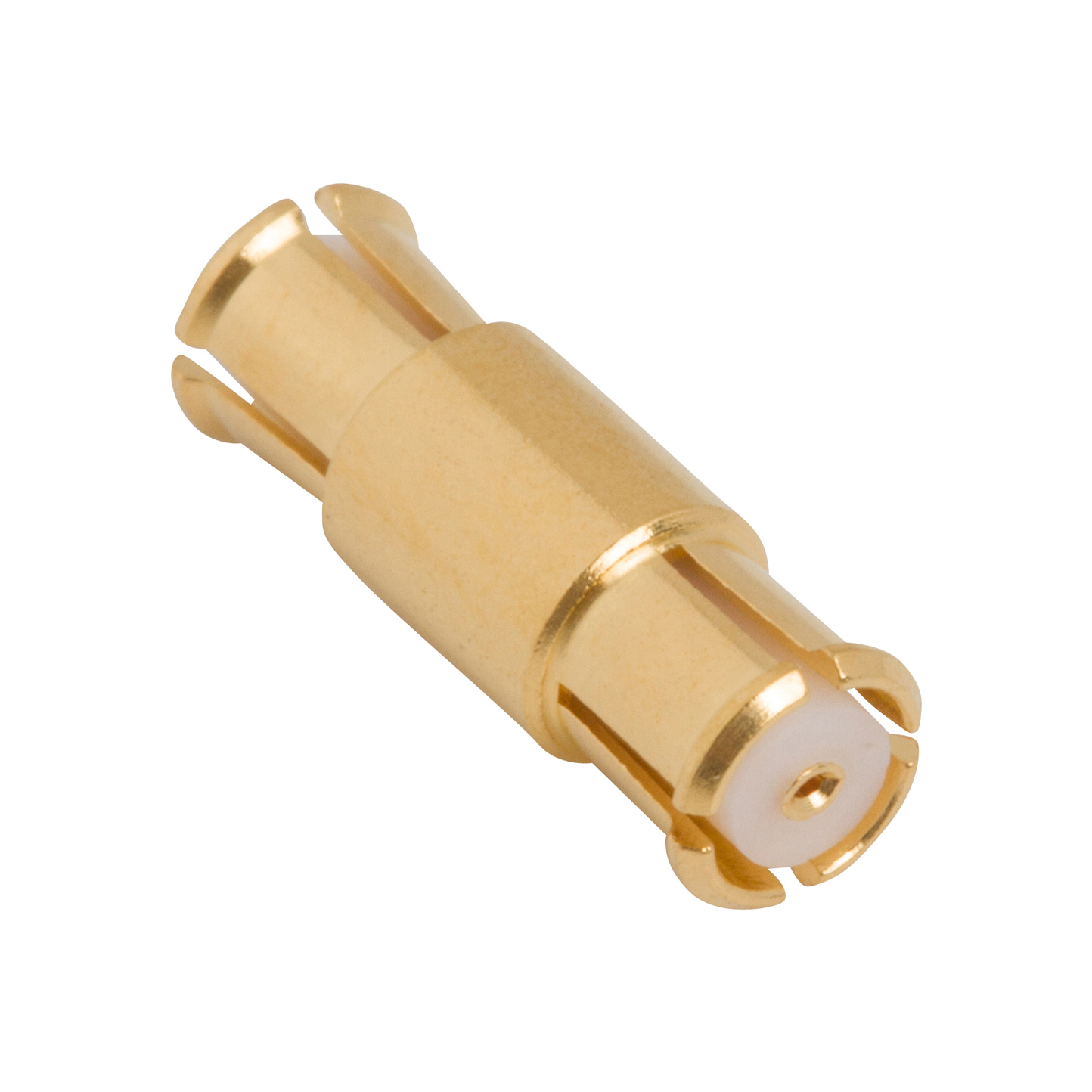

SMP-FS2A-990

Active

Amphenol RF

RF / COAXIAL ADAPTER, SMP, PLUG, SMP, PLUG, STRAIGHT ADAPTER, 50 OHM

Search across all available documentation for this part.

Active

Amphenol RF

RF / COAXIAL ADAPTER, SMP, PLUG, SMP, PLUG, STRAIGHT ADAPTER, 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	SMP-FS2A-990

Adapter Series	SMP to SMP
Adapter Type	Plug to Plug
Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	Female Socket, SMP Plug
Convert To (Adapter End)	SMP Plug, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	26.5 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Dielectric Material	Body Material	Center Contact Plating	Frequency - Max [Max]	Style	Adapter Type	Body Finish	Center Contact Material	Impedance	Convert To (Adapter End)	Fastening Type	Center Gender	Mounting Type	Conversion Type	Adapter Series	Operating Temperature [Min]	Operating Temperature [Max]	Convert From (Adapter End)
Amphenol RF SMP-FS2A-645	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Gold	26.5 GHz	Straight	Plug to Plug	Gold	Beryllium Copper	50 Ohms	Female Socket SMP Plug	Snap-On	Female to Female	Free Hanging (In-Line)	Same Series	SMP to SMP	-65 ░C	165 °C	Female Socket SMP Plug
Amphenol RF SMP-FS2A-224	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Gold	26.5 GHz	Straight	Plug to Plug	Gold	Beryllium Copper	50 Ohms	Female Socket SMP Plug	Snap-On	Female to Female	Free Hanging (In-Line)	Same Series	SMP to SMP	-65 ░C	165 °C	Female Socket SMP Plug
Amphenol RF SMP-FS2A-1259	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Gold	40 GHz	Straight	Plug to Plug	Gold	Beryllium Copper	50 Ohms	Female Socket SMP Plug	Snap-On	Female to Female	Free Hanging (In-Line)	Same Series	SMP to SMP	-65 ░C	165 °C	Female Socket SMP Plug
Amphenol RF SMP-FS2A-990	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Gold	26.5 GHz	Straight	Plug to Plug	Gold	Beryllium Copper	50 Ohms	Female Socket SMP Plug	Snap-On	Female to Female	Free Hanging (In-Line)	Same Series	SMP to SMP	-65 ░C	165 °C	Female Socket SMP Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMP Plug, Female Socket To SMP Plug, Female Socket 50 Ohms
