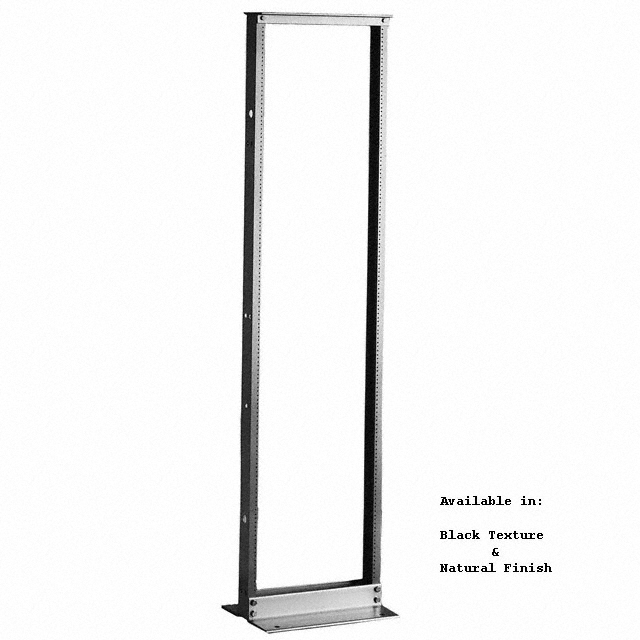

ARR-1294-BT
ObsoleteBUD INDUSTRIES
RACK ALUMINUM RELAY 77" X 23"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ARR-1294-BT
ObsoleteBUD INDUSTRIES
RACK ALUMINUM RELAY 77" X 23"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ARR-1294-BT |
|---|---|
| Color | Black |
| Dimensions - Overall [x] | 381 mm |
| Dimensions - Overall [x] | 15 in |
| Dimensions - Overall [y] | 615.95 mm |
| Dimensions - Overall [y] | 24.25 in |
| Dimensions - Overall [z] | 2136.78 mm |
| Dimensions - Overall [z] | 84.125 " |
| Dimensions - Panel [x] | 3 " |
| Dimensions - Panel [x] | 76.2 mm |
| Dimensions - Panel [y] | 21.752 " |
| Dimensions - Panel [y] | 552.51 mm |
| Dimensions - Panel [z] | 1955.8 mm |
| Dimensions - Panel [z] | 77 " |
| Door | Doorless |
| Features | Mounting Brackets |
| Material | Metal, Aluminum |
| Number of Units | 44 U |
| Style | Single Frame, Open Rack |
| Type | Open Rack |
| Ventilation | Non-Vented |
| Weight | 18.1 kg |
| Weight | 40 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ARR-1294 Series
Metal, Aluminum Open Rack Open Rack, Single Frame 15.000" L x 24.250" W x 84.125" H (381.00mm x 615.95mm x 2136.78mm) Black
