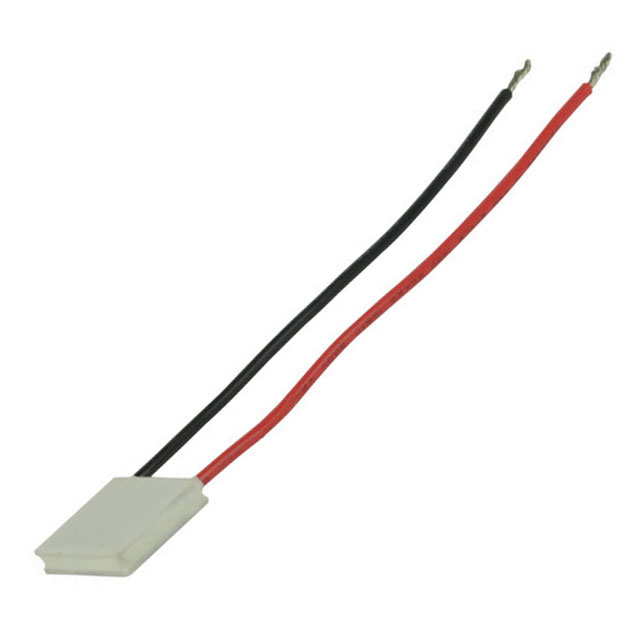

CP081030-M

Active

CUI Devices

PELTIER, 10 X 10 X 3 MM, 0.8 A,

Search across all available documentation for this part.

Active

CUI Devices

PELTIER, 10 X 10 X 3 MM, 0.8 A,

Technical Specifications

Parameters and characteristics for this part

Specification	CP081030-M

Current - Max [Max]	800 mA
Delta Tmax @ Th	68 °C
Features	Sealed - Silicone RTV, Lead Wires
Height [z]	3 mm
Number of Stages	1
Operating Temperature	80 °C
Qmax @ Th	3.7 W
Resistance	9.85 Ohms
Size / Dimension [x]	10 mm
Size / Dimension [y]	10 mm
Voltage - Max [Max]	8.8 V

Part	Delta Tmax @ Th	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Resistance	Qmax @ Th	Number of Stages	Voltage - Max [Max]	Features	Operating Temperature
CUI Devices CP081030-M	68 °C	800 mA	10 mm	10 mm	3 mm	9.85 Ohms	3.7 W	1	8.8 V	Lead Wires Sealed - Silicone RTV	80 °C
CUI Devices CP081030-M	68 °C	800 mA	10 mm	10 mm	3 mm	9.85 Ohms	3.7 W	1	8.8 V	Lead Wires Sealed - Silicone RTV	80 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 3.7W @ 27°C 0.8 A 80°C
