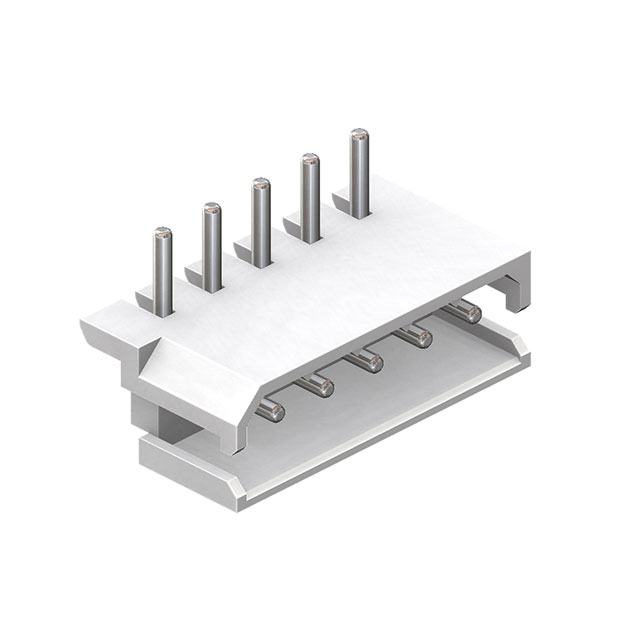

52125-05-0200-01

Active

CnC Tech, LLC

WIRE-TO BOARD HEADER, 2.5MM, 5 C

Search across all available documentation for this part.

Active

CnC Tech, LLC

WIRE-TO BOARD HEADER, 2.5MM, 5 C

Technical Specifications

Parameters and characteristics for this part

Specification	52125-05-0200-01

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Detent Lock
Insulation Color	Beige
Insulation Height	4.9 mm
Insulation Height	0.193 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Connector Type	Insulation Material	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Mounting Type	Number of Positions Loaded	Contact Material	Style	Fastening Type	Shrouding	Voltage Rating	Contact Shape	Number of Rows	Insulation Color	Insulation Height	Insulation Height	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Termination	Contact Type	Number of Positions
CnC Tech, LLC 52125-05-0200-01	Header	Polyamide (PA66) Nylon 6/6	Tin	3.5 mm	0.138 in	2.5 mm	0.098 in	Through Hole Right Angle	All	Brass	Board to Cable/Wire	Detent Lock	Shrouded - 4 Wall	250 VDC	Circular	1	Beige	4.9 mm	0.193 in	3 A	85 °C	-40 °C	UL94 V-0	Solder	Male Pin
CnC Tech, LLC 52125-10-0200-01	Header	Polyamide (PA66) Nylon 6/6	Tin	3.5 mm	0.138 in	2.5 mm	0.098 in	Through Hole Right Angle	All	Brass	Board to Cable/Wire	Detent Lock	Shrouded - 4 Wall	250 VDC	Circular	1	Beige	4.9 mm	0.193 in	3 A	85 °C	-40 °C	UL94 V-0	Solder	Male Pin	10
CnC Tech, LLC 52125-04-0200-01	Header	Polyamide (PA66) Nylon 6/6	Tin	3.5 mm	0.138 in	2.5 mm	0.098 in	Through Hole Right Angle	All	Brass	Board to Cable/Wire	Detent Lock	Shrouded - 4 Wall	250 VDC	Circular	1	Beige	4.9 mm	0.193 in	3 A	85 °C	-40 °C	UL94 V-0	Solder	Male Pin	4
CnC Tech, LLC 52125-07-0200-01	Header	Polyamide (PA66) Nylon 6/6	Tin	3.5 mm	0.138 in	2.5 mm	0.098 in	Through Hole Right Angle	All	Brass	Board to Cable/Wire	Detent Lock	Shrouded - 4 Wall	250 VDC	Circular	1	Beige	4.9 mm	0.193 in	3 A	85 °C	-40 °C	UL94 V-0	Solder	Male Pin	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 5 position 0.098" (2.50mm)
