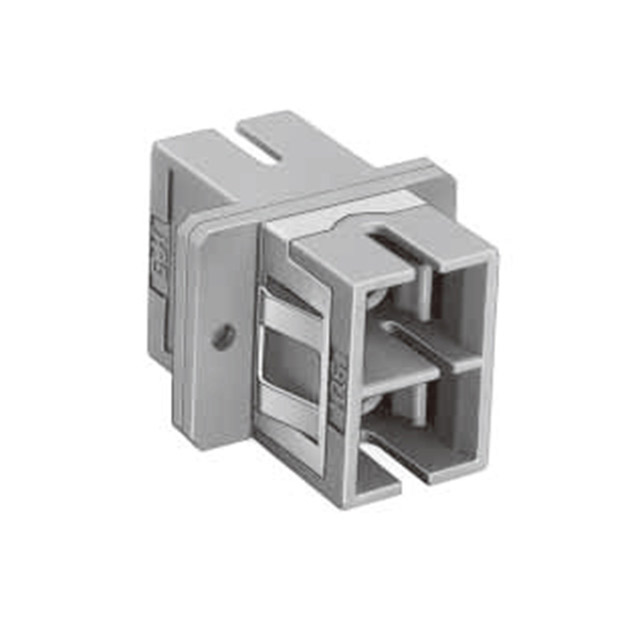

HSCH-2A-D2(P)(03)

Obsolete

Hirose Electric USA, Inc.

CONN COUPLER RCPT SC-SC DUPLEX

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN COUPLER RCPT SC-SC DUPLEX

Technical Specifications

Parameters and characteristics for this part

Specification	HSCH-2A-D2(P)(03)

Color	Green
Convert From (Adapter End)	SC Receptacle
Convert To (Adapter End)	SC Receptacle
Features	Angle Polished, Dust Cap
Ferrule Material	Zirconia
Housing Material	Synthetic Resin
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Simplex/Duplex	Duplex
Type	Coupler

Part	Housing Material	Ferrule Material	Convert To (Adapter End)	Type	Mounting Type	Features	Convert From (Adapter End)	Simplex/Duplex	Color	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating
Hirose Electric USA, Inc. HSCH-2A1-D(P)(05)	Synthetic Resin	Zirconia	SC Receptacle	Coupler	Panel Mount Snap-In	Dust Cap	SC Receptacle	Duplex	Blue	70 °C	-25 °C
Hirose Electric USA, Inc. HSCH-2A-D2(P)(03)	Synthetic Resin	Zirconia	SC Receptacle	Coupler	Flange Panel Mount Snap-In	Angle Polished Dust Cap	SC Receptacle	Duplex	Green	70 °C	-25 °C	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coupler Fiber Optic Connector SC Receptacle To SC Receptacle Panel Mount, Flange; Snap-In

Technical documentation and resources

No documents available
