567-94AB
ActiveWakefield-Vette

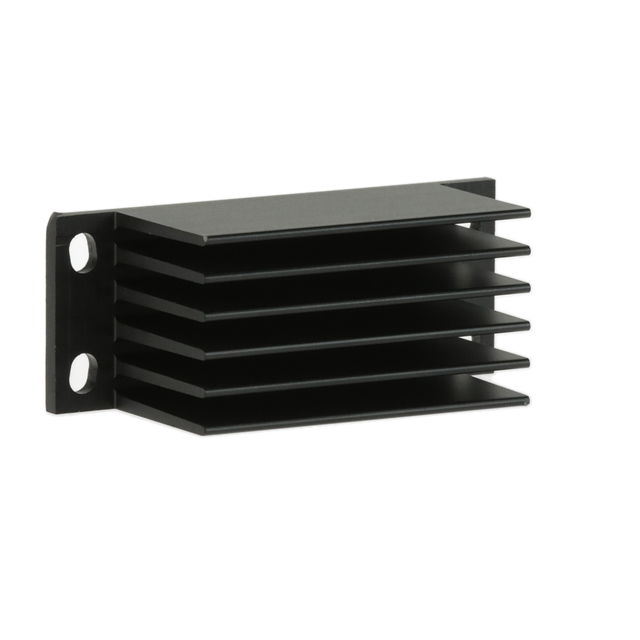

1/8 BRICK HEATSINK 57.9X55X23.9M
Deep-Dive with AI
Search across all available documentation for this part.
567-94AB
ActiveWakefield-Vette
1/8 BRICK HEATSINK 57.9X55X23.9M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 567-94AB |
|---|---|
| Attachment Method | Thermal Material, Bolt On |
| Fin Height | 0.94 in |
| Fin Height | 23.88 mm |
| Length | 2.28 " |
| Length | 57.9 mm |
| Material Finish | Unfinished |
| Package Cooled | Eighth Brick DC/DC Converter |
| Shape | Rectangular, Fins |
| Thermal Resistance @ Forced Air Flow | 2.2 °C/W |
| Thermal Resistance @ Natural | 2.2 °C/W |
| Type | Top Mount |
| Width [y] | 55 mm |
| Width [y] | 2.165 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.70 | |
| 10 | $ 5.54 | |||
| 25 | $ 5.24 | |||
| 50 | $ 4.93 | |||
| 100 | $ 4.62 | |||
| 250 | $ 4.31 | |||
| 500 | $ 4.00 | |||
| 1000 | $ 3.93 | |||
Description
General part information
567-94 Series
Heat Sink Eighth Brick DC/DC Converter Top Mount
Documents
Technical documentation and resources
No documents available
