Z8F6423FT00ZEM

Active

Zilog

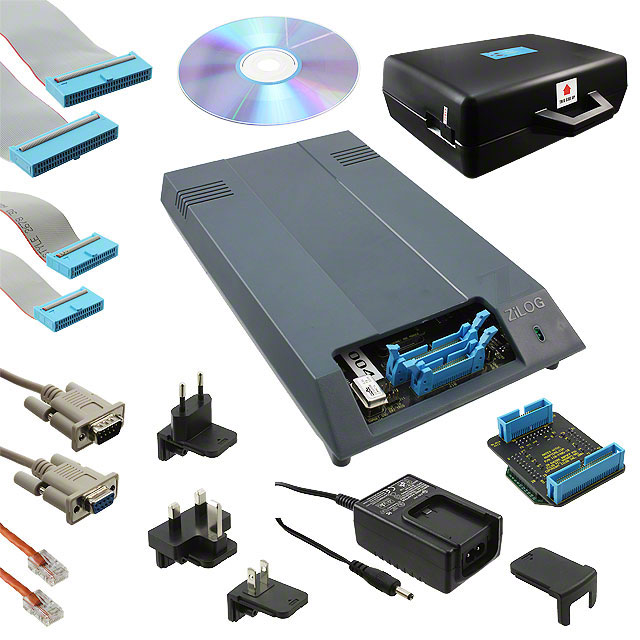

KIT ICE Z8 ENCORE 64K 80QFP

Search across all available documentation for this part.

Active

Zilog

KIT ICE Z8 ENCORE 64K 80QFP

Technical Specifications

Parameters and characteristics for this part

Specification	Z8F6423FT00ZEM

Contents	Cable(s), Board(s)
For Use With/Related Products	Z8 Encore! 80-QFP
Type	Emulator (In-Circuit/In-System)

Part	Package / Case	Core Processor	Program Memory Type	Oscillator Type	RAM Size	Core Size	Peripherals	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Connectivity	Number of I/O	Program Memory Size	Speed	Data Converters	Type	Contents	For Use With/Related Products
Zilog Z8F6423FT020EC00TR	80-BQFP	eZ8	FLASH	Internal	4K x 8	8-Bit	Brown-out Detect/Reset DMA POR PWM WDT	105 °C	-40 °C	Surface Mount	I2C IrDA SPI UART/USART	60	64 KB	20 MHz	10 b 12
Zilog Z8F6423FT020SC	80-BQFP	eZ8	FLASH	Internal	4K x 8	8-Bit	Brown-out Detect/Reset DMA POR PWM WDT	70 °C	0 °C	Surface Mount	I2C IrDA SPI UART/USART	60	64 KB	20 MHz	10 b 12
Zilog Z8F6423FT020SC00TR	80-BQFP	eZ8	FLASH	Internal	4K x 8	8-Bit	Brown-out Detect/Reset DMA POR PWM WDT	70 °C	0 °C	Surface Mount	I2C IrDA SPI UART/USART	60	64 KB	20 MHz	10 b 12
Zilog Z8F6423FT00ZEM																Emulator (In-Circuit/In-System)	Board(s) Cable(s)	Z8 Encore! 80-QFP
Zilog Z8F6423FT020EG	80-BQFP	eZ8	FLASH	Internal	4K x 8	8-Bit	Brown-out Detect/Reset DMA POR PWM WDT	105 °C	-40 °C	Surface Mount	I2C IrDA SPI UART/USART	60	64 KB	20 MHz	10 b 12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Z8 Encore! 80-QFP Z8 Encore!® Emulator (In-Circuit/In-System)

Technical documentation and resources
