892-032-500-108
ActiveEDAC Inc.

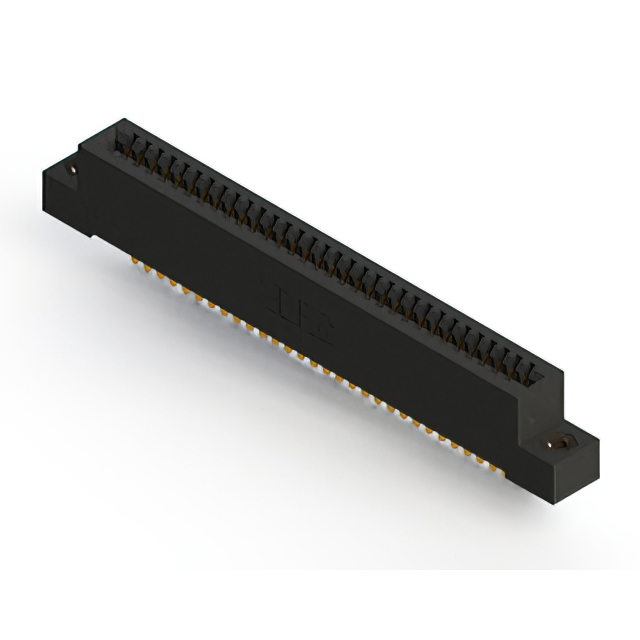

CONN EDGE SINGLE FML 32POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
892-032-500-108
ActiveEDAC Inc.
CONN EDGE SINGLE FML 32POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 892-032-500-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions/Bay/Row [custom] | 32 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
892-032 Series
...
| Part | Contact Finish | Card Type | Pitch [x] | Pitch [x] | Contact Type | Flange Feature | Termination | Number of Rows | Color | Contact Material | Material - Insulation | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Number of Positions/Bay/Row [custom] | Read Out | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | Non Specified - Single Edge | 2.54 mm | 0.1 in | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Solder Eyelet(s) | 1 | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | Through Hole | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 125 °C | -40 °C | Female | 32 | Single | ||
EDAC Inc. | Gold | Non Specified - Single Edge | 2.54 mm | 0.1 in | Cantilever | Wire Wrap | 1 | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | Through Hole | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 125 °C | -40 °C | Female | 32 | Single | |||
EDAC Inc. | Gold | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Cantilever | Solder | 2 | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | Through Hole | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 125 °C | -40 °C | Female | 16 | Dual | |||
EDAC Inc. | Gold | Non Specified - Single Edge | 2.54 mm | 0.1 in | Cantilever | Floating Bobbin Flush Mount | Solder Eyelet(s) | 1 | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | Through Hole | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 125 °C | -40 °C | Female | 32 | Single | 0.116 in | 2.95 mm |
EDAC Inc. | Gold | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Cantilever | Flush Mount Top Opening Unthreaded | Solder Eyelet(s) | 2 | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | Through Hole | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 125 °C | -40 °C | Female | 16 | Dual | 0.156 in | 3.96 mm |
EDAC Inc. | Gold | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Cantilever | Flush Mount M3 Threaded Insert Top Opening | Solder | 2 | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | Through Hole | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 125 °C | -40 °C | Female | 16 | Dual | ||
EDAC Inc. | Gold | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Cantilever | Solder Eyelet(s) | 2 | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | Through Hole | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 125 °C | -40 °C | Female | 16 | Dual | |||
EDAC Inc. | Gold | Non Specified - Single Edge | 2.54 mm | 0.1 in | Cantilever | Floating Bobbin Flush Mount | Wire Wrap | 1 | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | Through Hole | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 125 °C | -40 °C | Female | 32 | Single | 0.116 in | 2.95 mm |
EDAC Inc. | Gold | Non Specified - Single Edge | 2.54 mm | 0.1 in | Cantilever | Flush Mount Top Opening Unthreaded | Wire Wrap | 1 | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | Through Hole | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 125 °C | -40 °C | Female | 32 | Single | 0.128 " | 3.25 mm |
EDAC Inc. | Gold | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Cantilever | Flush Mount Side Opening Unthreaded | Wire Wrap | 2 | Black | Copper Alloy | Polyphenylene Sulfide (PPS) | Through Hole | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 125 °C | -40 °C | Female | 16 | Dual | 0.128 " | 3.25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
892-032 Series
32 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
