TST06AH00

Active

ITT Cannon, LLC

CONNECTOR ACCESSORY, STRAIN RELIEF HOOD, SNAP TOGETHER RECTANGULAR PLUG CONNECTORS, 6 POSITIONS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

TST06AH00

Active

ITT Cannon, LLC

CONNECTOR ACCESSORY, STRAIN RELIEF HOOD, SNAP TOGETHER RECTANGULAR PLUG CONNECTORS, 6 POSITIONS

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TST06AH00

Accessory Type	Hood and Strain Relief
For Use With/Related Products	Trident Rectangular Plugs
Number of Positions	6

TST06 Series

Part	Number of Positions	Accessory Type	For Use With/Related Products	Row Spacing	Row Spacing	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Fastening Type	Number of Rows	Contact Type	Color	Pitch [x]	Pitch [x]	Connector Type	Mounting Type	Note	Contact Shape	Contact Length - Post	Contact Length - Post	Features	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Current Rating (Amps)	Contact Finish - Mating	Termination	Pitch - Mating	Pitch - Mating	Style	Material Flammability Rating	Applications	Shrouding	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Finish Thickness - Mating
ITT Cannon, LLC TST06AS00	6	Shroud	Trident Rectangular Receptacles
ITT Cannon, LLC TST06PA00	6			5.08 mm	0.2 in	Crimp and Solder	105 ░C	-55 °C	Nylon Polyamide (PA)	Latch Lock	2	Male or Female	Black	0.2 in	5.08 mm	Plug	Free Hanging (In-Line)	Contacts Not Included
ITT Cannon, LLC TST06RB05Y	6						105 ░C	-40 °C	Nylon Polyamide (PA)	Latch Holder	2	Male Pin				Receptacle	Through Hole		Circular	0.224 "	5.7 mm	Mounting Flange	13.5 mm	0.531 in	5.08 mm	0.2 "	Black	13 A	Gold	Solder	5.08 mm	0.2 in	Board to Cable/Wire	UL94 V-0	Automotive Industrial	Unshrouded	250 VDC	30 Áin	0.76 Ám	All
ITT Cannon, LLC TST06RB02Z	6						105 ░C	-40 °C	Nylon Polyamide (PA)	Latch Holder	2	Female Socket				Receptacle	Through Hole		Circular	0.224 "	5.7 mm	Mounting Flange	13.5 mm	0.531 in	5.08 mm	0.2 "	Black		Gold	Solder	5.08 mm	0.2 in	Board to Board Cable	UL94 V-0	Automotive General Purpose					All	Flash
ITT Cannon, LLC TST06AH00	6	Hood and Strain Relief	Trident Rectangular Plugs
ITT Cannon, LLC TST06PH00	6			5.08 mm	0.2 in	Crimp and Solder	105 ░C	-55 °C	Nylon Polyamide (PA)	Latch Lock	2	Male or Female	Black	0.2 in	5.08 mm	Plug	Free Hanging (In-Line)	Contacts Not Included				Strain Relief

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 2.89
		10	$ 2.63
		25	$ 2.49
		50	$ 2.43
		100	$ 2.31
		250	$ 2.04
Newark	Each	1	$ 3.95
		10	$ 3.36
		25	$ 3.15
		50	$ 3.01
		100	$ 2.86
		250	$ 2.68
		500	$ 2.55
		1000	$ 2.43

Description

General part information

TST06 Series

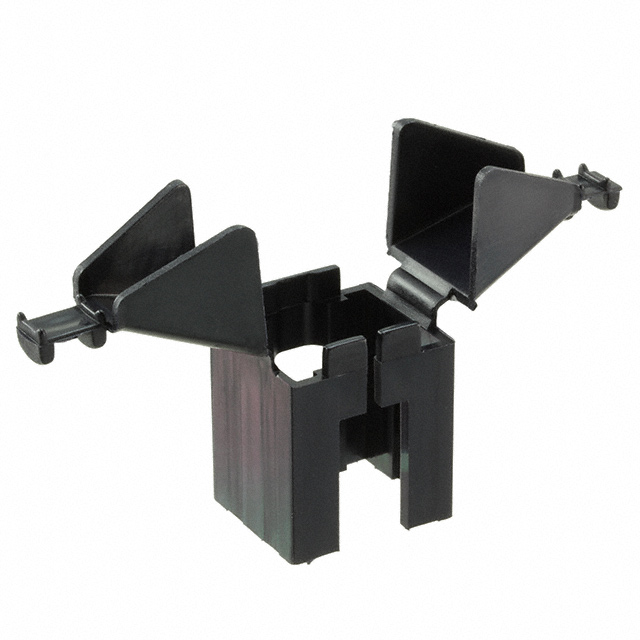

The TST06AH00 is a 6-way black Plug Hood, made of nylon. The Trident snap-together rectangular series hood provides strain relief and wire protection, integrally moulded latches and facilitate easy assembly.

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

One Page Summary EN

Datasheet
