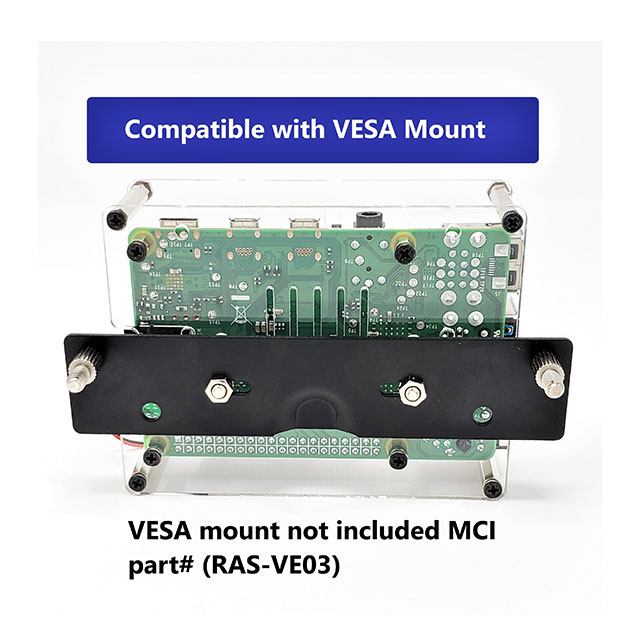

RAS-PCS46

Active

Micro Connectors, Inc.

CASE ACRYLIC CLR 3.579"LX2.740"W

Search across all available documentation for this part.

Active

Micro Connectors, Inc.

CASE ACRYLIC CLR 3.579"LX2.740"W

Technical Specifications

Parameters and characteristics for this part

Specification	RAS-PCS46

Area (L x W)	63.2 cm²
Area (L x W)	9.8 in²
Color	Clear
Container Type	Case
Design	Split Sides, Hand Held
Height [z]	5.654 in
Height [z]	143.6 mm
Material	Acrylic
Platform	Raspberry Pi 4B, B, B+, Raspberry Pi Zero W, Raspberry Pi 3A
Size / Dimension [x]	90.9 mm
Size / Dimension [x]	3.579 in
Size / Dimension [y]	2.74 "
Size / Dimension [y]	69.6 mm

Part	Material	Design	Color	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Container Type	Platform	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
Micro Connectors, Inc. RAS-PCS46	Acrylic	Hand Held Split Sides	Clear	5.654 in	143.6 mm	63.2 cm²	9.8 in²	Case	B B+ Raspberry Pi 3A Raspberry Pi 4B Raspberry Pi Zero W	90.9 mm	2.74 "	69.6 mm	3.579 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Case Acrylic Clear Hand Held, Split Sides 3.579" L x 2.740" W (90.90mm x 69.60mm) X 5.654" (143.60mm)
