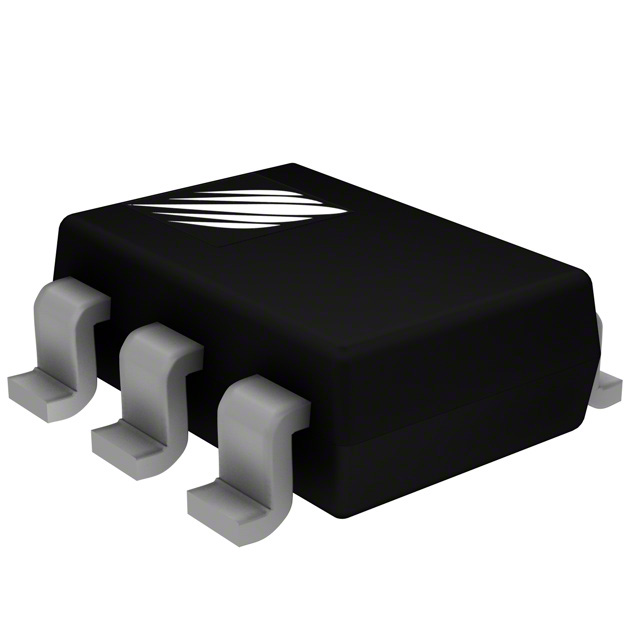

PE42359SCAA-Z
ActivepSemi Corporation
IC RF SWITCH SPDT 3GHZ SC70-6
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PE42359SCAA-Z
ActivepSemi Corporation
IC RF SWITCH SPDT 3GHZ SC70-6
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PE42359SCAA-Z |
|---|---|
| Circuit | SPDT |
| Features | Single/Dual Line Control |
| Frequency Range [Max] | 3 GHz |
| Frequency Range [Min] | 10 MHz |
| IIP3 | 55 dBm |
| Impedance | 50 Ohms |
| Insertion Loss | 0.5 dB |
| Isolation | 13 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| P1dB | 30.5 dBm |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| RF Type | General Purpose |
| Supplier Device Package | SC-70-6 |
| Test Frequency | 2 GHz, 3 GHz |
| Topology | Reflective |
| Voltage - Supply [Max] | 3.3 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.02 | |
| 101 | $ 0.82 | |||
| 1000 | $ 0.68 | |||
| Digi-Reel® | 1 | $ 1.02 | ||
| 101 | $ 0.82 | |||
| 1000 | $ 0.68 | |||
| Tape & Reel (TR) | 3000 | $ 0.68 | ||
| 6000 | $ 0.51 | |||
| 15000 | $ 0.48 | |||
Description
General part information
PE42359 Series
RF Switch IC General Purpose SPDT 3 GHz 50Ohm SC-70-6
