50.007 PABSSW

Active

Jacob GmbH

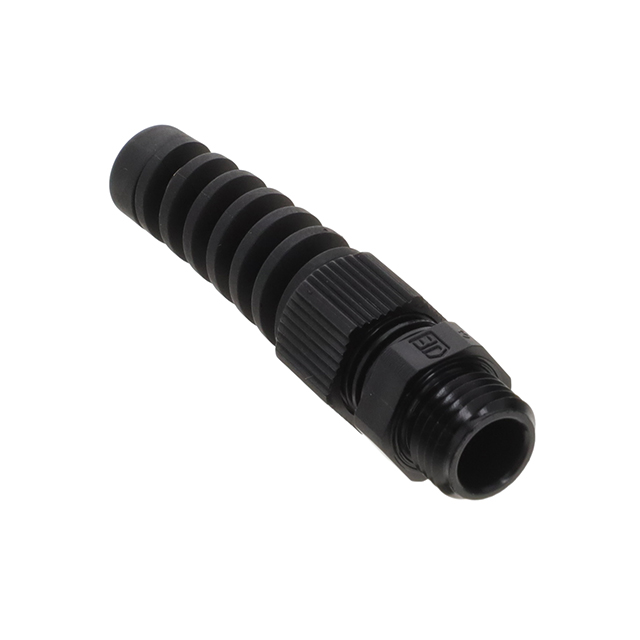

CABLE GLAND 3-6.5MM PG7 POLYAMID

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 3-6.5MM PG7 POLYAMID

Technical Specifications

Parameters and characteristics for this part

Specification	50.007 PABSSW

Color	Black
Includes	Strain Relief
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.256 "
Outside Cable Diameter (Max) [Max] [diameter]	6.5 mm
Outside Cable Diameter (Min) [Min] [diameter]	3 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.118 in
Thread Length	8 mm
Thread Length	0.315 in
Thread Size	PG7
Type	Cable Gland

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Includes	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Type	Thread Length	Thread Length
Jacob GmbH 50.007 PABSSW	3 mm	0.118 in	0.256 "	6.5 mm	Black	Strain Relief	IP68 - Dust Tight Waterproof	100 °C	-40 °C	PG7	Cable Gland	8 mm	0.315 in
Jacob GmbH 50.007 PA	3 mm	0.118 in	0.256 "	6.5 mm	Gray	Sealing Ring	IP68 - Dust Tight Waterproof	100 °C	-40 °C	PG7	Cable Gland	8 mm	0.315 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 PG7 Black
