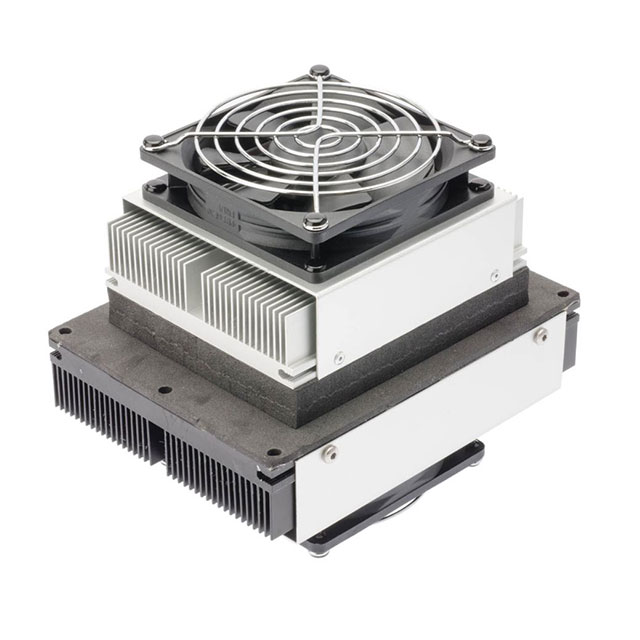

AA-040-24-22-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY AIR-AIR 39W
Deep-Dive with AI
Search across all available documentation for this part.
AA-040-24-22-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY AIR-AIR 39W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AA-040-24-22-00-00 |
|---|---|
| Current | 2.6 A |
| Dimensions - Overall [x] | 160 mm |
| Dimensions - Overall [y] | 122 mm |
| Dimensions - Overall [z] | 146.3 mm |
| Fan Location | Cold Side / Warm Side |
| Heat Transfer Type | Air to Air |
| Operating Temperature [Max] | 52 °C |
| Operating Temperature [Min] | -10 °C |
| Power - Cooling | 39 W |
| Power - Input | 62 W |
| Voltage | 24 V |
| Weight | 1.8 kg |
| Weight | 4 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 370.79 | |
| 5 | $ 347.62 | |||
| 10 | $ 338.35 | |||
| 25 | $ 289.68 | |||
Description
General part information
AA-040-24 Series
Air to Air Thermoelectric Assembly 39 W
