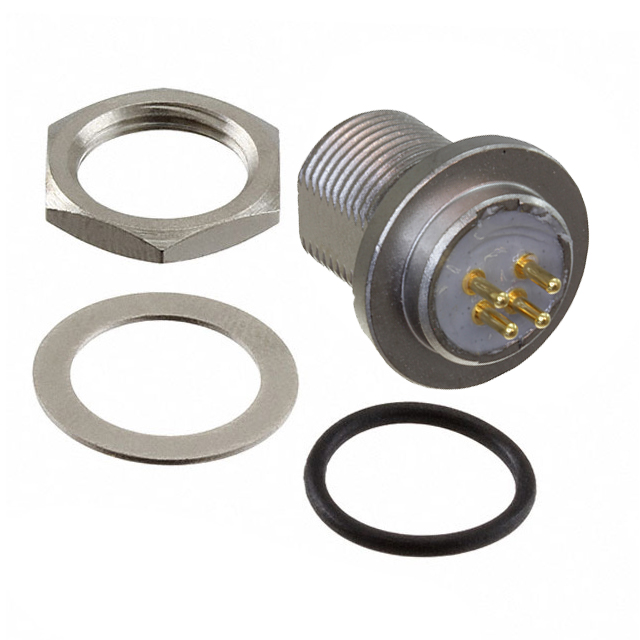

TS2P4M20-BPE

Active

Switchcraft Inc.

CONN CIRCULAR PIN 4 POS SOLDER ST THRU-HOLE 4 TERMINAL 1 PORT BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TS2P4M20-BPE

Active

Switchcraft Inc.

CONN CIRCULAR PIN 4 POS SOLDER ST THRU-HOLE 4 TERMINAL 1 PORT BULK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TS2P4M20-BPE

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	4
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Solder
Voltage Rating	125 VAC

TS2P4M Series

Headers & Wire Housings .100" Single Row Screw Machine Terminal Strip

Part	Features	For Use With/Related Products	Color	Accessory Type	Orientation	Voltage Rating	Termination	Shell Finish	Applications	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Ingress Protection	Contact Material	Primary Material	Mounting Feature	Number of Positions	Connector Type	Shielding	Contact Finish - Mating	Mounting Type	Current Rating (Amps)	Backshell Material, Plating	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
Switchcraft Inc. TS2CCAP	Dust Tight Water Resistant Waterproof	Cable Plug	Black	Cap (Cover) Sealing
Switchcraft Inc. TS2P4M20			Silver		Keyed	125 VAC	Crimp Solder Cup	Electroless Nickel	Agriculture Audio General Medical Testing Equipment & Measurement	Copper Alloy	135 °C	-40 °C	Liquid Crystal Polymer (LCP)	IP66 IP67 IP68	Copper Alloy	Metal	Bulkhead - Rear Side Nut	4	Male Pins Receptacle	Shielded	Gold
Switchcraft Inc. TS2P8M26-BP			Silver		Keyed	30 VAC	Solder	Electroless Nickel	Agriculture Audio General Medical Testing Equipment & Measurement	Copper Alloy	135 °C	-40 °C	Liquid Crystal Polymer (LCP)	IP66 IP67 IP68	Copper Alloy	Metal	Bulkhead - Front Side Nut	8	Male Pins Receptacle	Shielded	Gold	Panel Mount Through Hole
Switchcraft Inc. TS2P4M20-BPE			Silver		Keyed	125 VAC	Solder	Electroless Nickel	Agriculture Audio General Medical Testing Equipment & Measurement	Copper Alloy	135 °C	-40 °C	Liquid Crystal Polymer (LCP)	IP66 IP67 IP68	Copper Alloy	Metal	Bulkhead - Front Side Nut	4	Male Pins Receptacle	Shielded	Gold	Panel Mount Through Hole
Switchcraft Inc. TS2P5M20-B			Silver		Keyed	125 VAC	Solder	Electroless Nickel	Agriculture Audio General Medical Testing Equipment & Measurement	Copper Alloy	135 °C	-40 °C	Liquid Crystal Polymer (LCP)	IP66 IP67 IP68	Copper Alloy	Metal	Bulkhead - Front Side Nut		Male Pins Receptacle	Shielded	Gold	Panel Mount Through Hole	8 A
Switchcraft Inc. TS2C8F26A	Backshell Coupling Nut		Silver		Keyed	30 VAC	Crimp Solder Cup	Electroless Nickel	Agriculture Audio General Medical Testing Equipment & Measurement	Copper Alloy	135 °C	-40 °C	Liquid Crystal Polymer (LCP)	IP66 IP67 IP68	Copper Alloy	Metal		8	Female Sockets Plug	Shielded	Gold	Free Hanging (In-Line)	10 A	Copper Alloy Nickel	0.106 in	0.142 in	2.7 mm	3.6 mm
