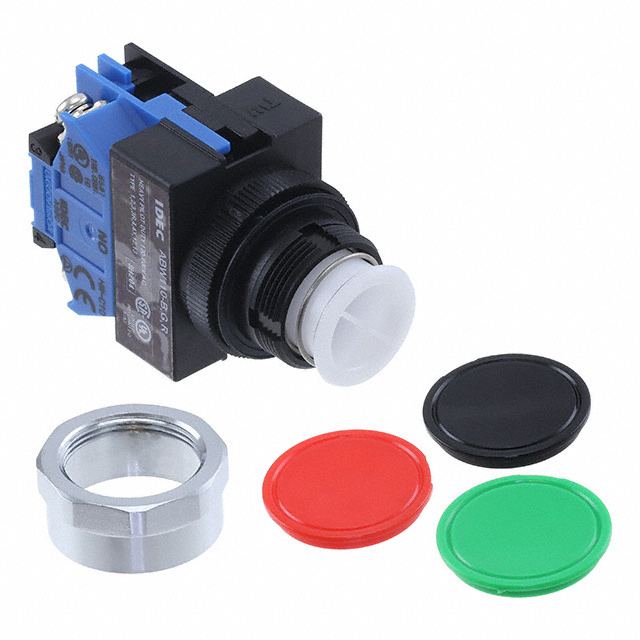

ABW110-BGR

Active

IDEC

INDUSTRIAL PUSHBUTTON SWITCH, TW SERIES, 22.3 MM, SPST-NO, MOMENTARY, ROUND, BLACK, GREEN, RED

Search across all available documentation for this part.

Active

IDEC

INDUSTRIAL PUSHBUTTON SWITCH, TW SERIES, 22.3 MM, SPST-NO, MOMENTARY, ROUND, BLACK, GREEN, RED

Technical Specifications

Parameters and characteristics for this part

Specification	ABW110-BGR

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Red, Black, Green
Current Rating (Amps)	8 A, 10 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	5000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	Off-Mom
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	110 V
Voltage Rating - DC	24 V

Part	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Type	Switch Function	Circuit	Ingress Protection	Actuator Type	Mounting Type	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Voltage Rating - AC	Mechanical Life	Voltage Rating - DC	Actuator Marking
IDEC ABW110-BGR	8 A 10 A	50 °C	-25 °C	Screw Terminal	Standard	Off-Mom	SPST-NO	IP65 - Dust Tight Water Resistant	Button Flush Round	Panel Mount Front	22.3 mm	Black Green Red	110 V	5000000 Cycles	24 V	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front
