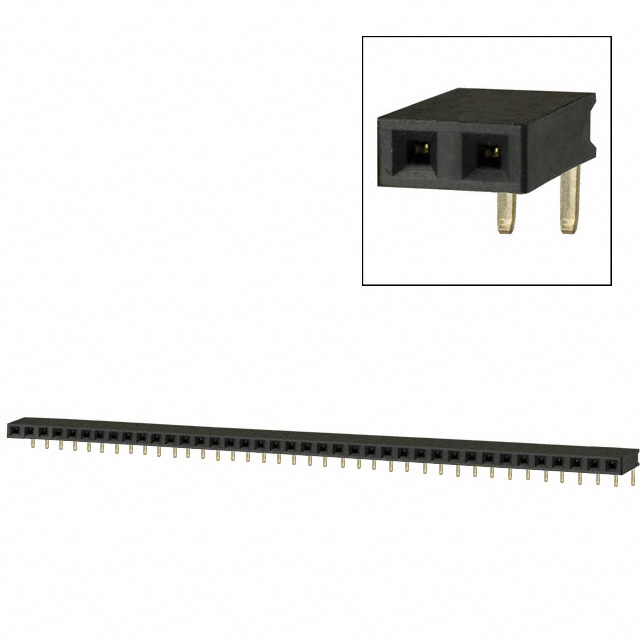

PPPC391LGBN-RC

Active

Sullins Connector Solutions

CONN HDR 39POS 0.1 GOLD PCB R/A

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN HDR 39POS 0.1 GOLD PCB R/A

Technical Specifications

Parameters and characteristics for this part

Specification	PPPC391LGBN-RC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	3.15 mm
Contact Length - Post	0.124 "
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	39
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	250 VDC

Part	Contact Shape	Contact Length - Post	Contact Length - Post [x]	Contact Material	Pitch - Mating	Pitch - Mating	Insulation Color	Insulation Material	Contact Type	Contact Finish Thickness - Post	Number of Rows	Number of Positions Loaded	Material Flammability Rating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Voltage Rating	Contact Finish Thickness - Mating	Termination	Current Rating (Amps)	Mounting Type	Insulation Height	Insulation Height	Contact Finish - Post	Connector Type	Contact Finish - Mating	Contact Length - Post
Sullins Connector Solutions PPPC391LFBN-RC	Square	3.2 mm	0.126 in	Phosphor Bronze	0.1 in	2.54 mm	Black	Polyester	Female Socket	Flash	1	All	UL94 V-0	Push-Pull	-40 °C	105 ░C	39	250 VDC	Flash	Solder	3 A	Through Hole	0.335 "	8.51 mm	Gold	Header	Gold
Sullins Connector Solutions PPPC391LGBN-RC	Square	3.15 mm		Phosphor Bronze	0.1 in	2.54 mm	Black	Polyester	Female Socket	Flash	1	All	UL94 V-0	Push-Pull	-40 °C	105 ░C	39	250 VDC	Flash	Solder	3 A	Through Hole Right Angle	0.1 in	2.54 mm	Gold	Header	Gold	0.124 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 1.37

General part information

39 Position Header Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
