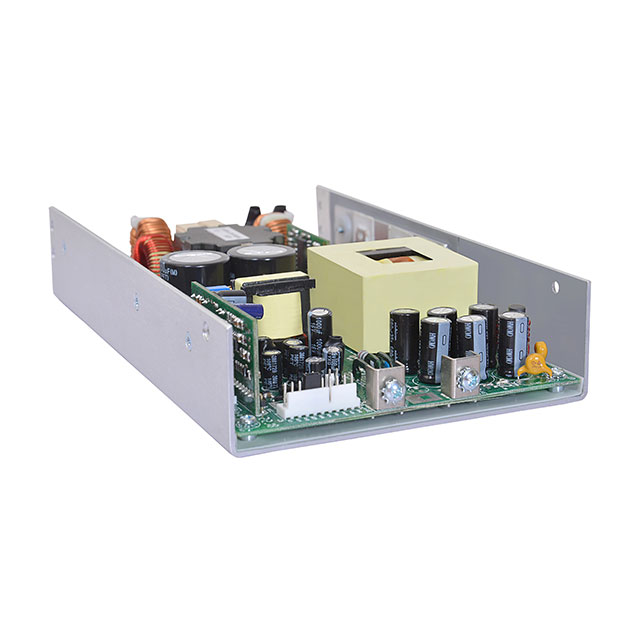

ACC600-1T48

Obsolete

EOS Power India Private Ltd

AC/DC POWER SUPPLY SINGLE-OUT 48V 12.5A 600W 17-PIN

Search across all available documentation for this part.

Obsolete

EOS Power India Private Ltd

AC/DC POWER SUPPLY SINGLE-OUT 48V 12.5A 600W 17-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	ACC600-1T48

Applications	ITE (Commercial)
Approval Agency	CE, NEMKO
Current - Output 1	12.5 A
Efficiency	93 %
Features	Load Sharing, PFC, Adjustable Output, Remote On/Off, Universal Input, Remote Sense, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	600 W
Size / Dimension [x]	216 mm
Size / Dimension [x]	8.5 in
Size / Dimension [y]	127 mm
Size / Dimension [y]	5 "
Size / Dimension [z]	41 mm
Size / Dimension [z]	1.61 "
Type	Open Frame
Voltage - Input [Max]	264 VAC, 390 VDC
Voltage - Input [Min]	120 VDC, 85 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	48 V

Part	Applications	Features	Type	Voltage - Isolation	Power (Watts)	Approval Agency	Number of Outputs	Efficiency	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Output 1	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]
EOS Power India Private Ltd ACC600-1T24	ITE (Commercial)	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	Open Frame	4000 V	600 W	CE NEMKO	1	93 %	Chassis Mount	216 mm	41 mm	1.61 "	127 mm	8.5 in	5 "	25 A	24 V	85 VAC 120 VDC	264 VAC 390 VDC
EOS Power India Private Ltd ACC600-1T12	ITE (Commercial)	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	Open Frame	4000 V	300 W	CE NEMKO	1	93 %	Chassis Mount	216 mm	41 mm	1.61 "	127 mm	8.5 in	5 "	25 A	12 V	85 VAC 120 VDC	264 VAC 390 VDC
EOS Power India Private Ltd ACC600-1T48	ITE (Commercial)	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	Open Frame	4000 V	600 W	CE NEMKO	1	93 %	Chassis Mount	216 mm	41 mm	1.61 "	127 mm	8.5 in	5 "	12.5 A	48 V	85 VAC 120 VDC	264 VAC 390 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 181.61
Digikey	Bulk	1	$ 271.49
		5	$ 263.00
Newark	Each	1	$ 282.35
		5	$ 268.24
		10	$ 259.76

General part information

Open Frame AC DC Converters 1 Output 48V 85 ~ 264 VAC, 120 ~ 390 VDC Input
