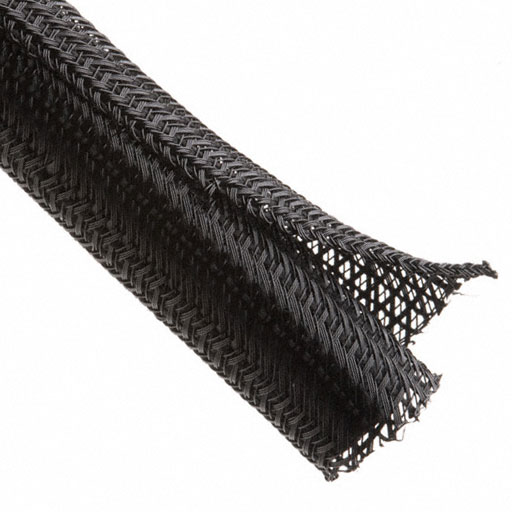

F6N2.00BK50

Active

Techflex

SELF WRAP 2" X 50' BLACK

Search across all available documentation for this part.

Active

Techflex

SELF WRAP 2" X 50' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	F6N2.00BK50

Abrasion Protection	Abrasion and Cut Resistant
Color	Black
Diameter - Inside, Non-Expanded [diameter]	50.8 mm
Diameter - Inside, Non-Expanded [diameter]	2 in
Features	Clean Cut, Chemical Resistant
Length	15.24 m
Length [x]	50 ft
Material	Polyethylene Terephthalate (PET), Halogen Free
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-70 °C
Type	Self Wrap
Type Attributes	Split Flexible Tube
Wall Thickness [custom]	0.96 mm
Wall Thickness [custom]	0.038 in

Part	Material	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Abrasion Protection	Type	Type Attributes	Color	Wall Thickness [custom]	Wall Thickness [custom]	Length	Length [x]	Length
Techflex F6N2.00BK50	Polyethylene Terephthalate (PET) Halogen Free	50.8 mm	2 in	Chemical Resistant Clean Cut	125 °C	-70 °C	UL94 V-0	Abrasion and Cut Resistant	Self Wrap	Split Flexible Tube	Black	0.96 mm	0.038 in	15.24 m	50 ft
Techflex F6N2.00BK10	Polyethylene Terephthalate (PET) Halogen Free	50.8 mm	2 in	Chemical Resistant Clean Cut	125 °C	-70 °C	UL94 V-0	Abrasion and Cut Resistant	Self Wrap	Split Flexible Tube	Black	0.96 mm	0.038 in	3.05 m		10 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Self Wrap X 50.00' (15.24m) Black
