UPS-PL1224-18

Active

Tycon Systems Inc.

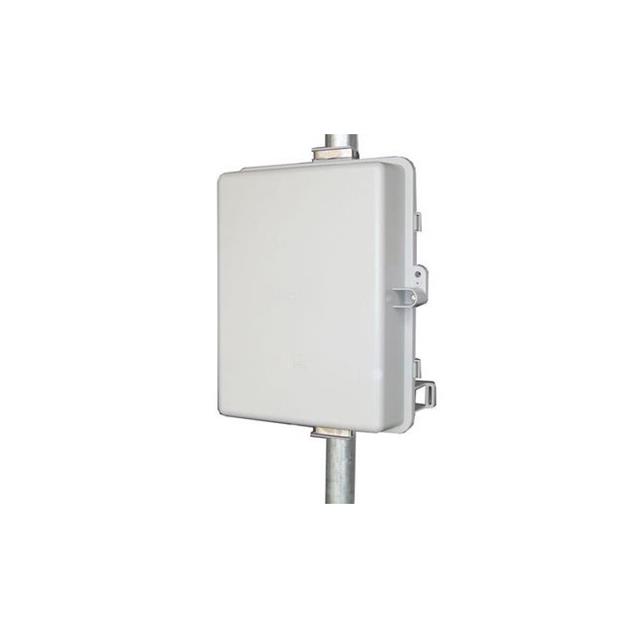

UPSPRO30W OUTDOOR UPS

Search across all available documentation for this part.

Active

Tycon Systems Inc.

UPSPRO30W OUTDOOR UPS

Technical Specifications

Parameters and characteristics for this part

Specification	UPS-PL1224-18

Applications	Industrial Control, General Purpose
Height [z]	152.4 mm, 152 mm
Height [z]	6 in, 5.984 in
Power - Rated	30 W
Size / Dimension [x]	17.5 in, 17.52 in
Size / Dimension [x]	444.5 mm, 445 mm
Size / Dimension [y]	317.5 mm, 318 mm
Size / Dimension [y]	12.5 in, 12.52 in
Type	Standby (No Regulation)
Voltage - Input	57 V
Voltage - Output	48 V, 24 V

Part	Power - Rated	Applications	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Type	Voltage - Output	Height [z]	Height [z]	Voltage - Input	Form
Tycon Systems Inc. UPS-PL1224-36	30 W	General Purpose Industrial Control	17.52 in	445 mm	12.52 in	318 mm	Standby (No Regulation)	24 V	5.984 in	152 mm	57 V
Tycon Systems Inc. UPS-PL1248-18	30 W	General Purpose Industrial Control	17.52 in	445 mm	12.52 in	318 mm	Standby (No Regulation)	48 V	5.984 in	152 mm	57 V	Chassis Mount
Tycon Systems Inc. UPS-PL1248-36	30 W	General Purpose Industrial Control	17.52 in	445 mm	12.52 in	318 mm	Standby (No Regulation)	48 V	5.984 in	152 mm	57 V	Chassis Mount
Tycon Systems Inc. UPS-PL1224-18	30 W	General Purpose Industrial Control	17.5 in 17.52 in	444.5 mm 445 mm	12.5 in 12.52 in	317.5 mm 318 mm	Standby (No Regulation)	24 V 48 V	5.984 in 6 in	152 mm 152.4 mm	57 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

UPSPRO30W OUTDOOR UPS
