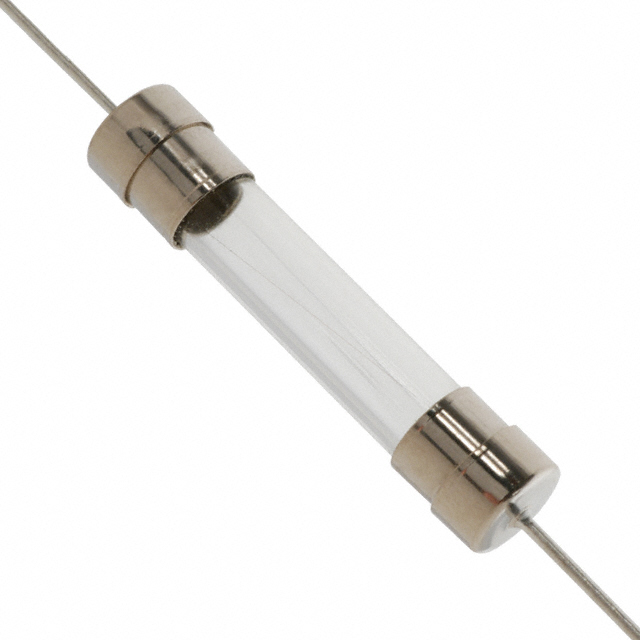

0318030.MXP

Active

Littelfuse/Commercial Vehicle Products

FUSE 32V FA PT 3AG PB-FREE 30A/ BULK

Search across all available documentation for this part.

Active

Littelfuse/Commercial Vehicle Products

FUSE 32V FA PT 3AG PB-FREE 30A/ BULK

Technical Specifications

Parameters and characteristics for this part

Specification	0318030.MXP

Approval Agency	cULus
Breaking Capacity @ Rated Voltage	300 A
Current Rating (Amps)	30 A
DC Cold Resistance	0.0019 Ohms
Melting I²t	3717
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	3AG, 3AB
Package / Case [x]	1/4
Package / Case [y]	1-1/4
Response Time	Fast Blow
Size / Dimension	32.72 mm, 6.99 mm
Size / Dimension [diameter]	0.275 "
Size / Dimension [x]	1.288 "
Voltage Rating - AC	32 V

FUSE 32V FA PT 3AG PB-FREE 30A

Part	Approval Agency	Breaking Capacity @ Rated Voltage	Melting I²t	Package / Case [x]	Package / Case [y]	Package / Case	Current Rating (Amps)	Response Time	DC Cold Resistance	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension	Size / Dimension [diameter]	Size / Dimension [x]	Voltage Rating - AC
Littelfuse/Commercial Vehicle Products 0318030.MXP	cULus	300 A	3717	1/4	1-1/4	3AB 3AG	30 A	Fast Blow	0.0019 Ohms	Through Hole	-55 °C	125 °C	6.99 mm 32.72 mm	0.275 "	1.288 "	32 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.80
Newark	Each	1000	$ 0.85
		2500	$ 0.76

General part information

The 3AG Fast-Acting Fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.
