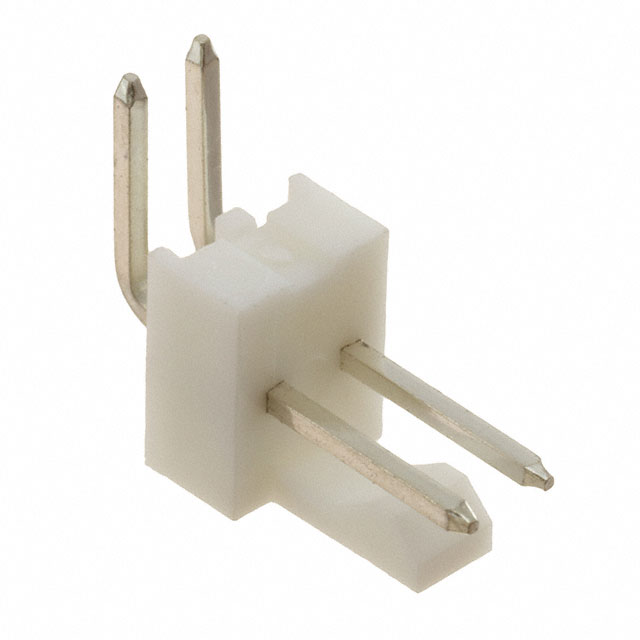

LHS-02-TRA

Active

Adam Tech

CONN HEADER R/A 2POS 2.54MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER R/A 2POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	LHS-02-TRA

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	6.7 mm
Contact Length - Mating	0.264 in
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	White
Insulation Height [z]	6.4 mm
Insulation Height [z]	0.252 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Number of Positions	Contact Type	Shrouding	Contact Material	Number of Positions Loaded	Contact Shape	Number of Rows	Contact Length - Mating	Contact Length - Mating	Insulation Material	Voltage Rating	Connector Type	Mounting Type	Contact Length - Post	Contact Length - Post	Termination	Insulation Color	Fastening Type	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Style	Current Rating (Amps)
Adam Tech LHS-02-TRA	2	Male Pin	Shrouded - 1 Wall	Brass	All	Square	1	6.7 mm	0.264 in	Polyamide (PA66) Nylon 6/6	250 VAC	Header	Through Hole Right Angle	0.13 in	3.3 mm	Solder	White	Friction Lock	Tin	6.4 mm	0.252 in	0.1 in	2.54 mm	UL94 V-0	-25 °C	85 °C	Board to Cable/Wire	3 A
