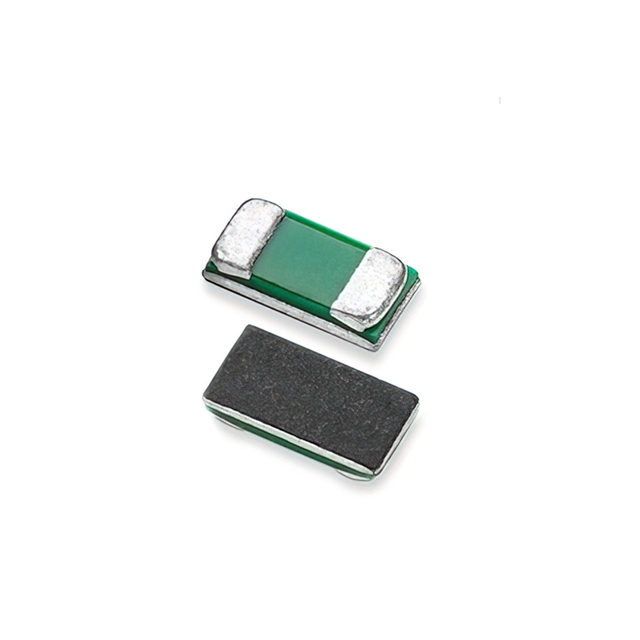

WJC0603LJUMPFNR
ActiveLittelfuse/Commercial Vehicle Products
"2T WJC0603 JUMP, 0 OHM "
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WJC0603LJUMPFNR
ActiveLittelfuse/Commercial Vehicle Products
"2T WJC0603 JUMP, 0 OHM "
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WJC0603LJUMPFNR |
|---|---|
| Features | High Voltage, Current Sense |
| Height - Seated (Max) [Max] [z] | 0.022 in |
| Height - Seated (Max) [Max] [z] | 0.55 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 170 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Resistance | 0 Ohms |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Size / Dimension [y] | 0.031 in |
| Tolerance | Jumper |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.44 | |
| 10 | $ 0.32 | |||
| 25 | $ 0.26 | |||
| 50 | $ 0.19 | |||
| 100 | $ 0.13 | |||
| 250 | $ 0.12 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.08 | |||
| Digi-Reel® | 1 | $ 0.44 | ||
| 10 | $ 0.32 | |||
| 25 | $ 0.26 | |||
| 50 | $ 0.19 | |||
| 100 | $ 0.13 | |||
| 250 | $ 0.12 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.08 | |||
| Tape & Reel (TR) | 5000 | $ 0.06 | ||
Description
General part information
WJC0603LJUMPF Series
Littelfuse WJC Series is a high-current metal foil jumper chip.
