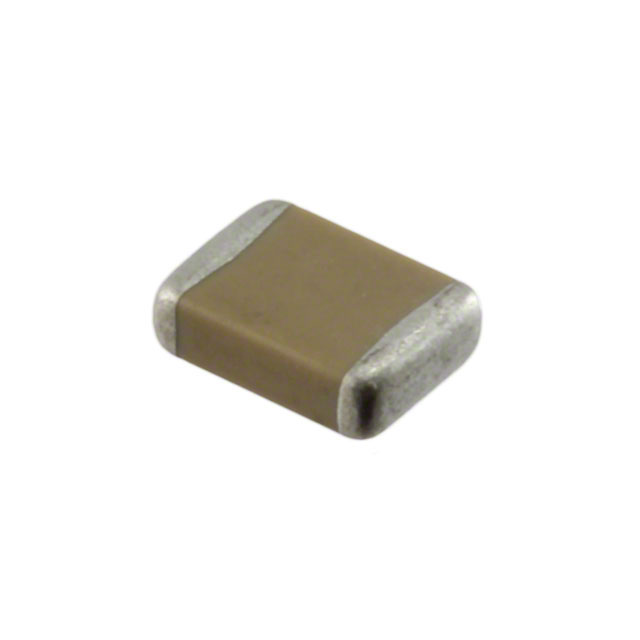

GA243QR7E2223MW01L
ActiveMurata Power Solutions Inc.
CAP CER 0.022UF 250VAC X7R 1812
Deep-Dive with AI
Search across all available documentation for this part.
GA243QR7E2223MW01L
ActiveMurata Power Solutions Inc.
CAP CER 0.022UF 250VAC X7R 1812
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GA243QR7E2223MW01L |
|---|---|
| Applications | SMPS Filtering |
| Capacitance | 0.022 µF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [x] | 4.5 mm |
| Size / Dimension [y] | 3.2 mm |
| Size / Dimension [y] | 0.126 " |
| Temperature Coefficient | X7R |
| Thickness (Max) | 1.5 mm |
| Thickness (Max) [Max] | 0.059 " |
| Tolerance | 20 % |
| Voltage - Rated | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.83 | |
| 10 | $ 1.37 | |||
| 50 | $ 1.25 | |||
| 100 | $ 1.02 | |||
| 500 | $ 0.82 | |||
| Digi-Reel® | 1 | $ 1.83 | ||
| 10 | $ 1.37 | |||
| 50 | $ 1.25 | |||
| 100 | $ 1.02 | |||
| 500 | $ 0.82 | |||
| Tape & Reel (TR) | 1000 | $ 0.72 | ||
| 2000 | $ 0.67 | |||
| 5000 | $ 0.65 | |||
| 10000 | $ 0.62 | |||
Description
General part information
GA243QR7E Series
0.022 µF ±20% 250V Ceramic Capacitor X7R 1812 (4532 Metric)
