XUK2APBNL2R

Active

TELEMECANIQUE SENSORS

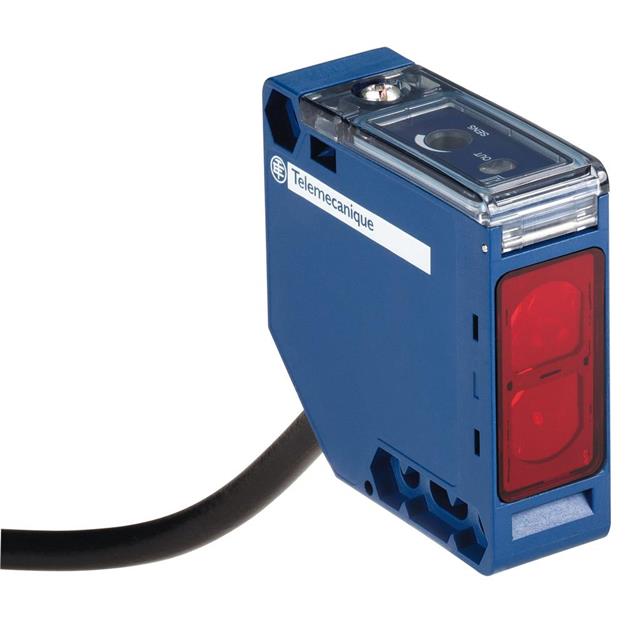

PHOTOELECTRIC SENSOR, XUK SERIES, OSIRIS, THROUGH-BEAM, 30M, PNP / SPST-NC, 12-24V, PRE-WIRED

Search across all available documentation for this part.

Active

TELEMECANIQUE SENSORS

PHOTOELECTRIC SENSOR, XUK SERIES, OSIRIS, THROUGH-BEAM, 30M, PNP / SPST-NC, 12-24V, PRE-WIRED

Technical Specifications

Parameters and characteristics for this part

Part	Sensing Distance	Sensing Distance	Sensor Type	Termination Style	Material - Body	Output Type	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Indicator [custom]	Ingress Protection	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Cable Length	Cable Length	Connection Method	Sensing Method	Response Time	Adjustment Type	Light Source	Output Configuration
TELEMECANIQUE SENSORS XS630B1NAL2	15 mm	0.591 "	Inductive	Cable Leads	Nickel-Plated Brass	NPN-NO 3-Wire	Unshielded	70 °C	-25 °C	LED	IP68 IP69K	Cylinder Threaded - M30
TELEMECANIQUE SENSORS XS512B1DAM12	2 mm	0.079 in	Inductive	Connector	Nickel-Plated Brass	NO 2-Wire	Unshielded	70 °C	-25 °C	LED	IP67 IP69K	Cylinder Threaded - M12
TELEMECANIQUE SENSORS XS518B1NAL2	5 mm	0.197 in	Inductive	Cable Leads	Nickel-Plated Brass	NPN-NO 3-Wire	Unshielded	70 °C	-25 °C	LED	IP68 IP69K	Cylinder Threaded - M18	12 V	24 V
TELEMECANIQUE SENSORS XS508B1DAM12	1.5 mm	0.059 "	Inductive	Connector	Stainless Steel	NO 2-Wire	Unshielded	70 °C	-25 °C	LED	IP67	Cylinder Threaded - M8
TELEMECANIQUE SENSORS XS612B1DAM12	4 mm	0.157 in	Inductive	Connector	Nickel-Plated Brass	NO 2-Wire	Unshielded	70 °C	-25 °C	LED	IP67 IP69K	Cylinder Threaded - M18
TELEMECANIQUE SENSORS XUK2APBNL2R								55 °C	-25 °C		IP65		12 V	24 V	78.74 in	2 m	Cable	Through-Beam	2 ms	Adjustable	Yellow LED	PNP-NC
TELEMECANIQUE SENSORS XUAH0515	50 mm	1.969 in						55 °C	-25 °C		IP65		12 V	24 V	78.74 in	2 m	Cable	Diffuse	500 µs	Adjustable	Yellow LED	PNP-NO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Through-Beam Optical Sensor 98.43' (30m) PNP-NC
