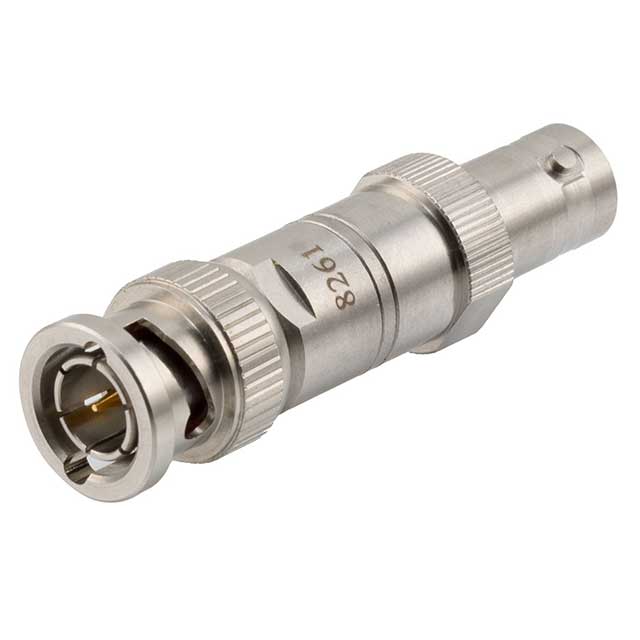

PE8261

Active

Pasternack

DC BLOCK: BNC 0.01-3GHZ

Deep-Dive with AI

Search across all available documentation for this part.

PE8261

Active

Pasternack

DC BLOCK: BNC 0.01-3GHZ

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PE8261

Adapter Series	BNC to BNC
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Brass, Bronze
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	BNC Plug, Male Pin
Fastening Type	Bayonet Lock
Frequency - Max [Max]	3 GHz
Impedance	75 Ohms
Insertion Loss	0.5 dB
Mounting Type	Free Hanging (In-Line)
Style	Straight

PE826 Series

Part	Center Contact Material	Style	Adapter Type	Impedance	Frequency - Max [Max]	Convert From (Adapter End)	Insertion Loss	Conversion Type	Convert To (Adapter End)	Fastening Type	Adapter Series	Mounting Type	Body Material	Center Contact Plating	Adapter Series [Max]	Adapter Series [Min]	Convert From (Adapter End)	Body Finish
Pasternack PE8263	Bronze	Straight	Plug to Jack	50 Ohms	4 GHz	BNC Jack Female Socket	0.5 dB	Same Series	BNC Plug Male Pin	Bayonet Lock	BNC to BNC	Free Hanging (In-Line)	Stainless Steel	Gold
Pasternack PE8267	Beryllium Copper	Straight	Plug to Jack	50 Ohms	40 GHz	Jack Female Socket OS-2.9	1.3 dB	Same Series	2.92mm (OS-2.9) Plug Male Pin			Free Hanging (In-Line)	Stainless Steel	Gold	2.92 mm	2.92 mm	2.92 mm
Pasternack PE8268	Beryllium Copper	Straight	Plug to Jack	50 Ohms	50 GHz		1.3 dB	Same Series	2.4mm (APC-2.4 OS-50) Plug Male Pin			Free Hanging (In-Line)	Stainless Steel	Gold	2.4 mm	2.4 mm	2.4 mm
Pasternack PE8269	Beryllium Copper Brass	Straight	Plug to Jack	50 Ohms	6000 MHz		0.5 dB	Same Series	Male Pin MCX Plug	Snap-On	MCX to MCX	Free Hanging (In-Line)	Brass	Gold				Tri-Metal
Pasternack PE8266	Beryllium Copper	Straight	Plug to Jack	50 Ohms	18 GHz	Female Socket SMA Jack	0.6 dB	Same Series	Male Pin SMA Plug		SMA to SMA	Free Hanging (In-Line)	Stainless Steel	Gold
Pasternack PE8261	Brass Bronze	Straight	Plug to Jack	75 Ohms	3 GHz	BNC Jack Female Socket	0.5 dB	Same Series	BNC Plug Male Pin	Bayonet Lock	BNC to BNC	Free Hanging (In-Line)	Stainless Steel	Gold
Pasternack PE8264	Beryllium Copper	Straight	Plug to Jack	50 Ohms	18 GHz	TNC Jack Female Socket	0.75 dB	Same Series	Male Pin TNC Plug		TNC to TNC	Free Hanging (In-Line)	Stainless Steel	Gold
Pasternack PE8265	Beryllium Copper	Straight	Plug to Jack	50 Ohms	18 GHz	Female Socket N Jack	0.75 dB	Same Series	Male Pin N Plug		N to N	Free Hanging (In-Line)	Stainless Steel	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 73.99
		25	$ 70.29
		50	$ 66.59
		100	$ 63.63

Description

General part information

PE826 Series

Adapter Coaxial Connector BNC Jack, Female Socket To BNC Plug, Male Pin 75 Ohms
