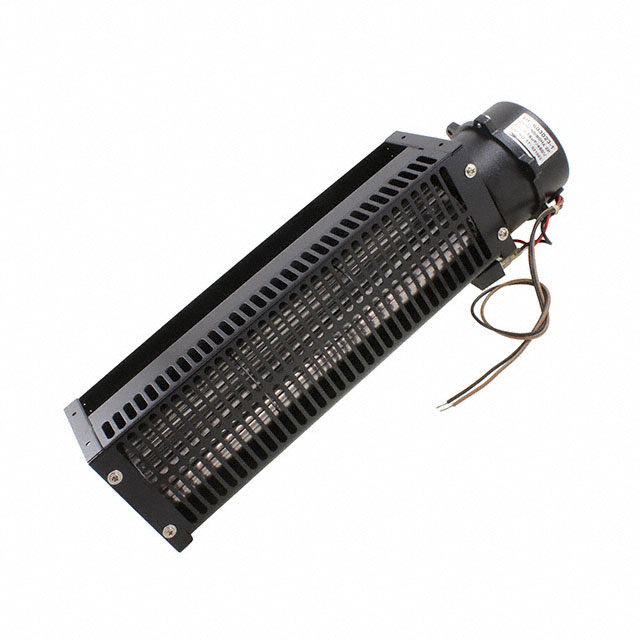

UF6030CBA23H-L

Active

Mechatronics Bearing Group

FAN BLWR CF 230VAC 402X98X90MM

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

FAN BLWR CF 230VAC 402X98X90MM

Technical Specifications

Parameters and characteristics for this part

Specification	UF6030CBA23H-L

Air Flow	195 CFM
Air Flow	5.46 m³/min
Approval Agency	CE, TUV
Bearing Type	Ball
Current Rating (Amps)	0.17 A
Fan Type	Blower, Cross Flow
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Material - Blade	Aluminum
Material - Frame	Steel
Noise	53 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	37 W
RPM	3000 RPM
Size / Dimension [x]	402 mm
Size / Dimension [y]	90 mm
Static Pressure	74.7 Pa
Static Pressure	0.3 in H2O
Termination	2 Wire Leads
Voltage - Rated	230 VAC
Weight	4.3 lbs
Weight	2 kg
Width [y]	98 mm

Part	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage - Rated	Features	RPM	Size / Dimension [y]	Size / Dimension [x]	Fan Type	Static Pressure	Static Pressure	Air Flow	Air Flow	Material - Blade	Noise	Bearing Type	Width [y]	Approval Agency	Power (Watts)	Material - Frame	Current Rating (Amps)	Termination	Weight	Weight
Mechatronics Bearing Group UF6030CBA23H-L	70 °C	70 °C	-40 °C	-40 °C	230 VAC	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	3000 RPM	90 mm	402 mm	Blower Cross Flow	74.7 Pa	0.3 in H2O	195 CFM	5.46 m³/min	Aluminum	53 dB	Ball	98 mm	CE TUV	37 W	Steel	0.17 A	2 Wire Leads	4.3 lbs	2 kg

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower, Cross Flow 230VAC Rectangular - 402mm L x 90mm H Ball 195.0 CFM (5.46m³/min) 2 Wire Leads
