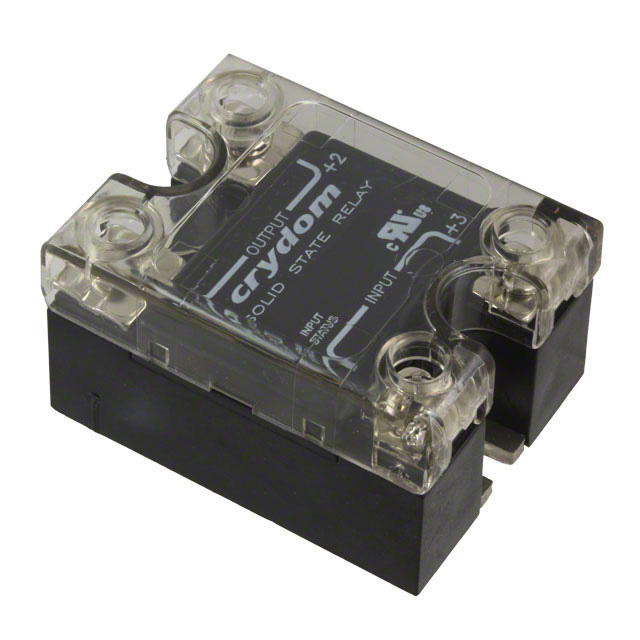

DC200D60C

Active

Sensata-Crydom

SSR RELAY SPST-NO 60A 1-150V

Search across all available documentation for this part.

Active

Sensata-Crydom

SSR RELAY SPST-NO 60A 1-150V

Technical Specifications

Parameters and characteristics for this part

Part	Load Current	Operating Temperature [Max]	Operating Temperature [Min]	On-State Resistance (Max) [Max]	Mounting Type	Termination Style	Approval Agency	Output Type	Voltage - Load [Min]	Voltage - Load [Max]	Package / Case	Voltage - Input [Max]	Voltage - Input [Min]
Sensata-Crydom DC200D20	20 A	100 °C	-40 °C	39 mOhms	Chassis Mount	Screw Terminal	CE cURus	DC	1 V	150 V	Hockey Puck	32 V	4 V
Sensata-Crydom DC200D20CH	20 A	100 °C	-40 °C	39 mOhms	Chassis Mount	Screw Terminal	CE cURus	DC	1 V	200 V	Hockey Puck	32 V	4 V
Sensata-Crydom DC200D40C	40 A	100 °C	-40 °C	16 mOhms	Chassis Mount	Screw Terminal	CE cURus	DC	1 V	150 V	Hockey Puck	32 V	4 V
Sensata-Crydom DC200D10C	10 A	100 °C	-40 °C	40 mOhms	Chassis Mount	Screw Terminal	CE cURus	DC	1 V	150 V	Hockey Puck	32 V	4 V
Sensata-Crydom DC200D60	60 A	100 °C	-40 °C	11 mOhms	Chassis Mount	Screw Terminal	CE cURus	DC	1 V	150 V	Hockey Puck	32 V	4 V
Sensata-Crydom DC200D60C	60 A	100 °C	-40 °C	11 mOhms	Chassis Mount	Screw Terminal	CE cURus	DC	1 V	150 V	Hockey Puck	32 V	4 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) Hockey Puck

Technical documentation and resources
