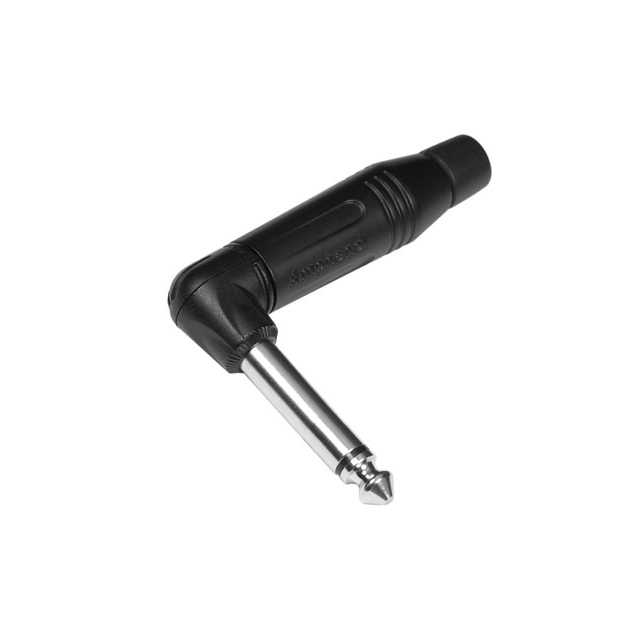

ACPM-RB BULK
ActiveAmphenol Sine Systems Corp
1/4" R SERIES PHONE 90' MONO NIC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACPM-RB BULK
ActiveAmphenol Sine Systems Corp
1/4" R SERIES PHONE 90' MONO NIC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACPM-RB BULK |
|---|---|
| Actual Diameter [diameter] | 0.249 in |
| Actual Diameter [diameter] | 6.32 mm |
| Body Color | Silver, Black |
| Cable Opening [Max] [custom] | 6.5 mm |
| Cable Opening [Max] [custom] | 0.256 in |
| Cable Opening [Min] [custom] | 0.118 in |
| Cable Opening [Min] [custom] | 3 mm |
| Connector Type | Phone Plug |
| Contact Material | Brass |
| Contact Material - Plating [custom] | Nickel |
| Current Rating (Amps) | 10 A |
| Gender | Male |
| Housing Material | Zinc Die Cast |
| Internal Switch(s) | False |
| Mating Length/Depth | 30.61 mm |
| Mating Length/Depth | 1.205 in |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Positions/Contacts [custom] | 2 |
| Number of Positions/Contacts [custom] | 2 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder Eyelet(s) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 500 | $ 3.95 | |
Description
General part information
ACPM Series
6.35mm (0.250", 1/4") - Headphone Phone Plug Mono Connector Solder Eyelet(s)
