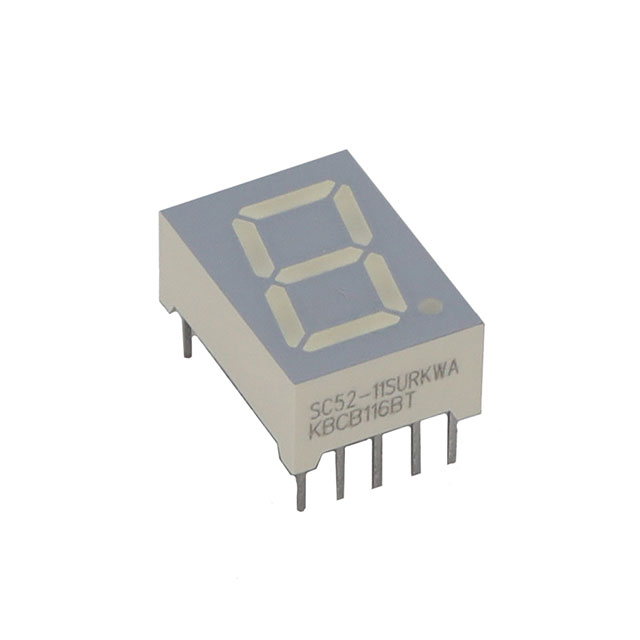

SC52-11SURKWA

Active

Kingbright

DISP 650NM HYPER RD NUMERIC .52"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SC52-11SURKWA

Active

Kingbright

DISP 650NM HYPER RD NUMERIC .52"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SC52-11SURKWA

Color	Red
Common Pin	Common Cathode
Current - Test	10 mA
Digit/Alpha Size	13.2 mm
Digit/Alpha Size	0.52 in
Display Type	7-Segment
Millicandela Rating	110 mcd
Number of Characters [custom]	1
Package / Case	0.6 in
Package / Case	15.24 mm
Package / Case	10-DIP
Size / Dimension [x]	17.5 mm
Size / Dimension [x]	0.689 in
Size / Dimension [y]	12.4 mm
Size / Dimension [y]	0.488 in
Size / Dimension [z]	7 mm
Size / Dimension [z]	0.276 in
Voltage - Forward (Vf) (Typ)	1.85 V
Wavelength - Peak	645 nm

SC52-11 Series

Part	Digit/Alpha Size	Digit/Alpha Size	Current - Test	Color	Package / Case	Package / Case	Package / Case	Power Dissipation (Max) [Max]	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Characters [custom]	Display Type	Wavelength - Peak	Common Pin	Millicandela Rating
Kingbright SC52-11EWA	13.21 mm	0.52 in	20 mA	Red	0.6 in	15.24 mm	10-DIP	75 mw	2 V	12.4 mm	7 mm	0.276 in	0.488 in	17.5 mm	0.689 in	1	7-Segment	627 nm	Common Cathode
Kingbright SC52-11GWA	13.21 mm	0.52 in	20 mA	Green	0.6 in	15.24 mm	10-DIP	62.5 mW	2.2 V	12.4 mm	7 mm	0.276 in	0.488 in	17.5 mm	0.689 in	1	7-Segment	565 nm	Common Cathode	10.5 mcd
Kingbright SC52-11SURKWA	13.2 mm	0.52 in	10 mA	Red	0.6 in	15.24 mm	10-DIP		1.85 V	12.4 mm	7 mm	0.276 in	0.488 in	17.5 mm	0.689 in	1	7-Segment	645 nm	Common Cathode	110 mcd

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.34
		40	$ 1.56
		120	$ 1.20
		520	$ 1.09
		1000	$ 0.93
		2000	$ 0.88
		5000	$ 0.86
		10000	$ 0.85

Description

General part information

SC52-11 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 1.85V 10mA 0.689" H x 0.488" W x 0.276" D (17.50mm x 12.40mm x 7.00mm) 10-DIP (0.600", 15.24mm)
