08S118-S00S3
ActiveRosenberger

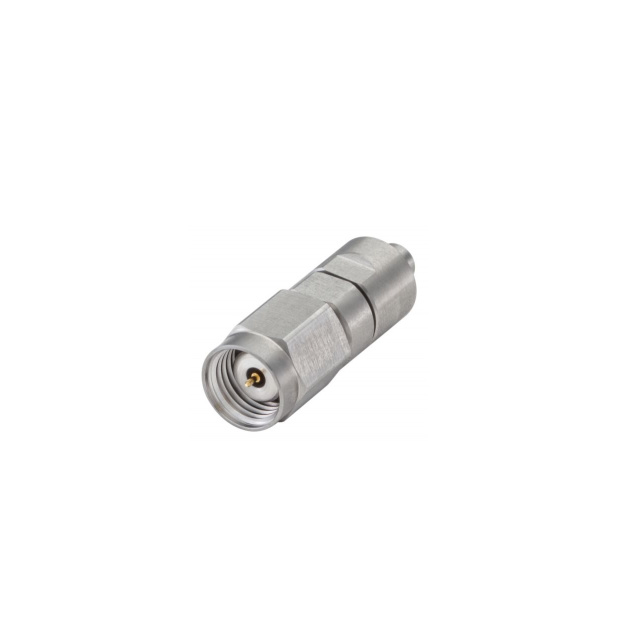

PRECISION 1.85 ADAPTER
Deep-Dive with AI
Search across all available documentation for this part.
08S118-S00S3
ActiveRosenberger
PRECISION 1.85 ADAPTER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 08S118-S00S3 |
|---|---|
| Adapter Series | RPC-1.85, SMP, Mini |
| Adapter Type | Plug to Plug |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male to Male |
| Conversion Type | Between Series |
| Convert From (Adapter End) | 1.85 mm |
| Convert From (Adapter End) | Plug, Male Pin |
| Convert To (Adapter End) | Male Pin, SMP Mini Plug |
| Dielectric Material | Polyetheretherketone (PEEK) |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max [Max] | 65 GHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.4 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 454.61 | |
Description
General part information
08S118 Series
Adapter Coaxial Connector 1.85mm Plug, Male Pin To SMP Mini Plug, Male Pin 50 Ohms
Documents
Technical documentation and resources
No documents available
