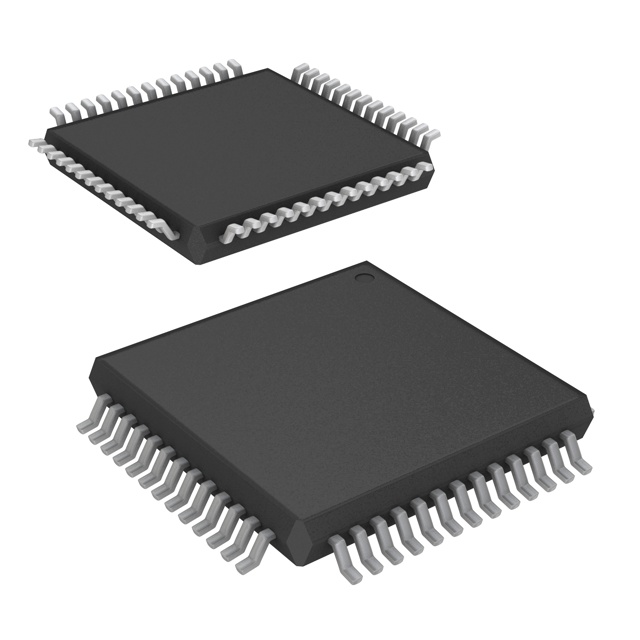

UPD78F0526AGB-GAG-AX

NRND

Renesas Electronics Corporation

COMPACT, LOW-POWER 8-BIT MICROCONTROLLERS FOR GENERAL PURPOSE APPLICATIONS (NON PROMOTION)

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 78K0/Kx2 User's Manual: Hardware (R01UH0008EJ0401_78K0Kx2)

UPD78F0526AGB-GAG-AX

NRND

Renesas Electronics Corporation

COMPACT, LOW-POWER 8-BIT MICROCONTROLLERS FOR GENERAL PURPOSE APPLICATIONS (NON PROMOTION)

Deep-Dive with AI

DocumentsDatasheet 78K0/Kx2 User's Manual: Hardware (R01UH0008EJ0401_78K0Kx2)

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UPD78F0526AGB-GAG-AX

Connectivity	LINbus, 3-Wire SIO, UART/USART, I2C
Core Processor	78K/0
Core Size	8-Bit
Data Converters [custom]	8
Data Converters [custom]	10
Mounting Type	Surface Mount
Number of I/O	45
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	52-LQFP
Peripherals	LVD, WDT, PWM, POR
Program Memory Size	96 KB
Program Memory Type	FLASH
RAM Size	5K
Speed	20 MHz
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	1.8 V

UPD78F0533 Series

Compact, Low-power 8-bit Microcontrollers for General Purpose Applications (Non Promotion)

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	RAM Size	Program Memory Type	Peripherals	Data Converters	Core Processor	Package / Case	Supplier Device Package	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Speed	Program Memory Size	Core Size	Mounting Type	Number of I/O	Connectivity	Oscillator Type	RAM Size	Data Converters [custom]	Data Converters [custom]
Renesas Electronics Corporation UPD78F0527GB(A)-GAG-AX	85 °C	-40 °C	7K x 8	FLASH	LVD PWM WDT	A/D 8x10b SAR	78K/0	52-LQFP	52-LQFP (10x10)	1.8 V	5.5 V	5 MHz	128 KB	8-Bit	Surface Mount	45	3-Wire I2C LINbus UART/USART	External Internal
Renesas Electronics Corporation UPD78F0535AGK(S)-GAJ-AX	85 °C	-40 °C		FLASH	LVD PWM WDT	A/D 8x10b SAR	78K/0	64-LQFP	64-LQFP (12x12)	1.8 V	5.5 V	20 MHz	60 KB	8-Bit	Surface Mount	54	3-Wire I2C LINbus UART/USART	External Internal
Renesas Electronics Corporation UPD78F0514GA(A)-GAM-E2-QS-AX	85 °C	-40 °C	2K x 8	FLASH	LVD PWM WDT	A/D 8x10b SAR	78K/0	48-LQFP	48-LFQFP (7x7)	1.8 V	5.5 V	5 MHz	48 KB	8-Bit	Surface Mount	41	3-Wire I2C LINbus UART/USART	External Internal
Renesas Electronics Corporation UPD78F0523AGB-GAG-AX	85 °C	-40 °C		FLASH	LVD POR PWM WDT		78K/0	52-LQFP		1.8 V	5.5 V	20 MHz	32 KB	8-Bit	Surface Mount	45	3-Wire SIO I2C LINbus UART/USART	Internal	1 K	8	10
Renesas Electronics Corporation UPD78F0534GB(A)-GAH-AX	85 °C	-40 °C	2K x 8	FLASH	LVD PWM WDT	A/D 8x10b SAR	78K/0	64-LQFP	64-LFQFP (10x10)	1.8 V	5.5 V	20 MHz	48 KB	8-Bit	Surface Mount	54	3-Wire I2C LINbus UART/USART	External Internal
Renesas Electronics Corporation UPD78F0534GB(T)-UEU-AT	85 °C	-40 °C	2K x 8	FLASH	LVD PWM WDT	A/D 8x10b SAR	78K/0	64-LQFP	64-LFQFP (10x10)	1.8 V	5.5 V	20 MHz	48 KB	8-Bit	Surface Mount	54	3-Wire I2C LINbus UART/USART	External Internal
Renesas Electronics Corporation UPD78F0512AGAA2-GAM-G	85 °C	-40 °C		FLASH	LVD POR PWM WDT	A/D 8x10b SAR	78K/0	48-LQFP	48-LFQFP (7x7)	1.8 V	5.5 V	20 MHz	24 KB	8-Bit	Surface Mount	41	3-Wire SIO I2C LINbus UART/USART	External Internal	1 K
Renesas Electronics Corporation UPD78F0536AGB-UEU-E3-AT	85 °C	-40 °C	5K	FLASH	LVD PWM WDT	A/D 8x10b SAR	78K/0	64-LQFP	64-LFQFP (10x10)	1.8 V	5.5 V	20 MHz	96 KB	8-Bit	Surface Mount	54	3-Wire I2C LINbus UART/USART	External Internal
Renesas Electronics Corporation UPD78F0526AGB-GAG-AX	85 °C	-40 °C	5K	FLASH	LVD POR PWM WDT		78K/0	52-LQFP		1.8 V	5.5 V	20 MHz	96 KB	8-Bit	Surface Mount	45	3-Wire SIO I2C LINbus UART/USART	Internal		8	10
Renesas Electronics Corporation UPD78F0524AGB(R)-GAG-AX	85 °C	-40 °C	2K x 8	FLASH	LVD PWM WDT	A/D 8x10b SAR	78K/0	52-LQFP	52-LQFP (10x10)	1.8 V	5.5 V	20 MHz	48 KB	8-Bit	Surface Mount	45	3-Wire I2C LINbus UART/USART	External Internal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	320	$ 4.82

Description

General part information

UPD78F0533 Series

The 78K0/Kx2+ Group is supported only for customers who have already adopted these products. The RL78/G13 Group is recommended for new designs.
