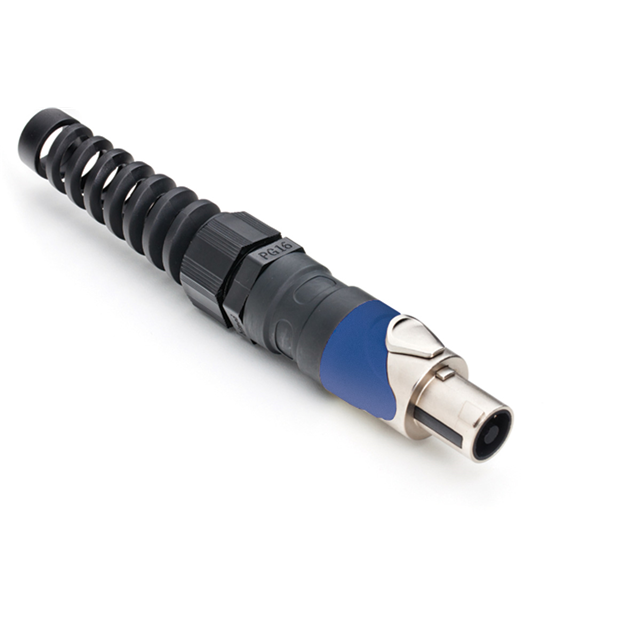

SP-2-FNL

Active

AMPHENOL AUDIO

2 POLE LOUDSPEAKER CABLE CONNECTORS, PG GLAND STRAIN RELIEF, HIGH POWER SCREW CONTACTS INCLUDED, METAL, NICKEL FINISH /BOX ROHS

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

2 POLE LOUDSPEAKER CABLE CONNECTORS, PG GLAND STRAIN RELIEF, HIGH POWER SCREW CONTACTS INCLUDED, METAL, NICKEL FINISH /BOX ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	SP-2-FNL

Applications	Audio
Backshell Material, Plating	Nylon 6, Polyamide (PA6), Glass Filled
Cable Opening [diameter]	0.354 in, 0.551 in
Cable Opening [diameter]	9 mm, 14 mm
Color	Silver
Connector Type	Plug, Non-Gendered
Contact Finish - Mating	Silver
Contact Material	Brass
Current Rating (Amps)	30 A
Fastening Type	Latch Lock
Features	Strain Relief, Backshell
Ingress Protection	IP54 - Dust Protected, Water Resistant
Insert Material	Glass Filled, Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shielding	Unshielded
Termination	Screw

Part	Shielding	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Material	Material Flammability Rating	Insert Material	Number of Positions	Connector Type	Shell Finish	Shell Material	Applications	Current Rating (Amps)	Mounting Type	Primary Material	Orientation	Cable Opening [diameter]	Cable Opening [diameter]	Features	Fastening Type	Color	Backshell Material, Plating	Termination
AMPHENOL AUDIO SP-2-FNL	Unshielded	IP54 - Dust Protected Water Resistant	-25 °C	75 ░C	Silver	Brass	UL94 HB	Glass Filled Nylon 6/6 Polyamide (PA66)	2	Plug Non-Gendered	Nickel	Zinc Die Cast	Audio	30 A	Free Hanging (In-Line)	Metal	Keyed	0.354 in 0.551 in	9 mm 14 mm	Backshell Strain Relief	Latch Lock	Silver	Glass Filled Nylon 6 Polyamide (PA6)	Screw
AMPHENOL AUDIO SP-2-F		IP54 - Dust Protected Water Resistant	-25 °C	75 ░C	Silver				2	Plug Non-Gendered		Polyamide (PA66) Nylon 6/6 Glass Filled			Free Hanging (In-Line)	Plastic	Keyed			Backshell	Latch Lock			Screw

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 12.40
Newark	Each	100	$ 12.75
		250	$ 11.64

General part information

2 Position Circular Connector Plug, Non-Gendered Screw
