SF3211-60034

Active

Amphenol SV Microwave

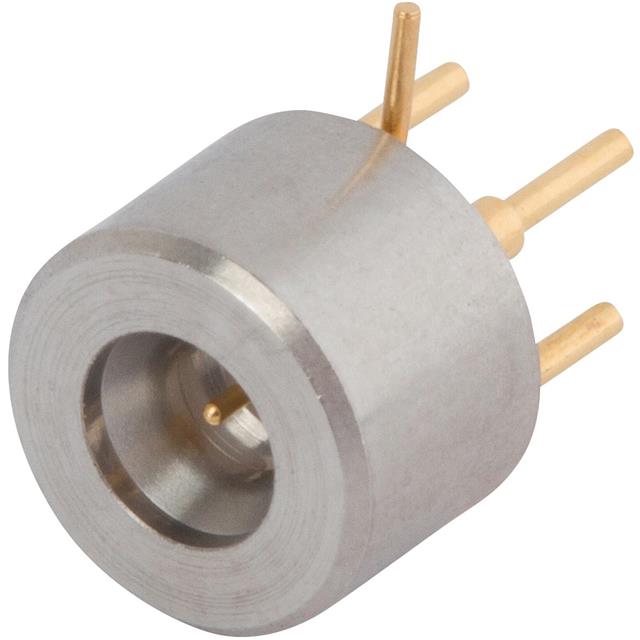

CONN SMPM PLUG STR 50 OHM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBoard to Board Brochure Datasheet

SF3211-60034

Active

Amphenol SV Microwave

CONN SMPM PLUG STR 50 OHM PCB

Deep-Dive with AI

DocumentsBoard to Board Brochure Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SF3211-60034

Body Material	Stainless Steel
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMPM
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Smooth Bore
Frequency - Max [Max]	20 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Through Hole
Number of Ports	1
Shield Termination	Solder

SF3211 Series

Part	Frequency - Max [Max]	Impedance	Features	Shield Termination	Connector Type	Fastening Type	Connector Style	Mounting Type	Dielectric Material	Body Material	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Housing Color	Center Contact Plating	Center Contact Material	Insertion Loss	Mounting Feature	Body Finish	Cable Group	Cable Group	Type	Wire Gauge	Pin or Socket	Contact Finish	Contact Material	Mating Cycles
Amphenol SV Microwave SF3211-60010	40 GHz	50 Ohms	Extended Insulation Full Detent	Solder	Male Pin Plug	Snap-On	SMPM	Panel Mount Threaded	Polytetrafluoroethylene (PTFE)	Stainless Steel	1	-55 °C	125 °C	Solder	Silver	Gold	Beryllium Copper
Amphenol SV Microwave SF3211-60218	65 GHz	50 Ohms	Flange	Screw	Male Pin Plug		SMPM	Surface Mount		Stainless Steel	1	-65 ░C	165 °C	Compression		Gold	Beryllium Copper	0.56 dB	Flange
Amphenol SV Microwave SF3211-60034	20 GHz	50 Ohms	Smooth Bore	Solder	Male Pin Plug	Snap-On	SMPM	Through Hole	Polytetrafluoroethylene (PTFE)	Stainless Steel	1			Solder	Silver	Gold	Brass
Amphenol SV Microwave SF3211-60013	40 GHz	50 Ohms	Full Detent	Solder	Male Pin Plug	Snap-On	SMPM		Polytetrafluoroethylene (PTFE)	Stainless Steel	1	-55 °C	125 °C	Solder	Gold	Gold	Beryllium Copper		Flange	Gold	0.085 in	RG-405
Amphenol SV Microwave SF3211-6004														Solder									Coaxial	0.085 in	Assembly Coax Pin Center	Gold	Beryllium Copper
Amphenol SV Microwave SF3211-60009	40 GHz	50 Ohms	Extended Insulation Full Detent	Solder	Male Pin Plug	Snap-On	SMPM	Panel Mount Threaded	Polytetrafluoroethylene (PTFE)	Stainless Steel	1	-55 °C	125 °C	Solder	Silver	Gold	Beryllium Copper
Amphenol SV Microwave SF3211-6000	40 GHz	50 Ohms	Smooth Bore	Solder	Male Pin Plug	Snap-On	SMPM		Polytetrafluoroethylene (PTFE)	Stainless Steel	1	-55 °C	125 °C	Solder	Silver	Gold	Beryllium Copper		Flange		0.085 in	RG-405						500
Amphenol SV Microwave SF3211-60033	20 GHz	50 Ohms	Full Detent	Solder	Male Pin Plug	Snap-On	SMPM	Through Hole	Polytetrafluoroethylene (PTFE)	Stainless Steel	1			Solder	Silver	Gold	Brass
Amphenol SV Microwave SF3211-60193-2S	65 GHz	50 Ohms	Flange	Screw	Male Pin Plug		SMPM	Surface Mount		Stainless Steel	1	-65 ░C	165 °C	Compression		Gold	Beryllium Copper	0.56 dB	Flange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 87.04
		10	$ 67.66
		25	$ 61.53
		50	$ 57.39
		100	$ 53.65

Description

General part information

SF3211 Series

SMPM Connector Plug, Male Pin 50 Ohms Through Hole Solder

Documents

Technical documentation and resources

Board to Board Brochure

Datasheet
