T0053419699N

Active

Apex Tool Group

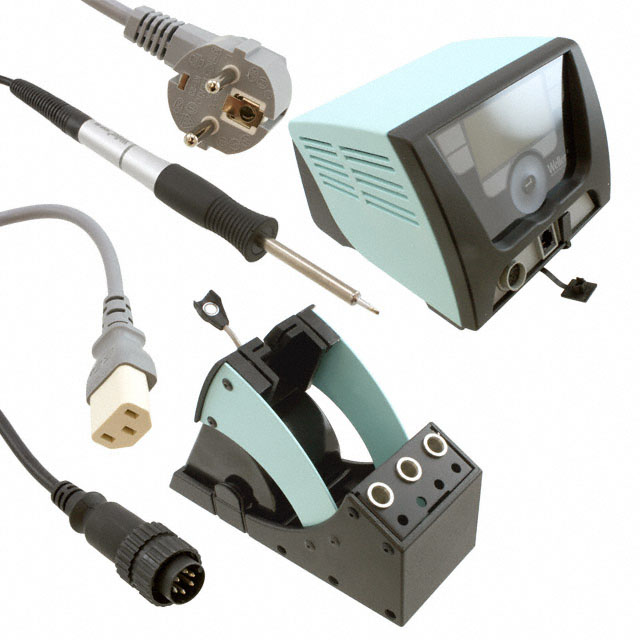

SOLDERING STATION 200W 1 CH 230V

Search across all available documentation for this part.

Active

Apex Tool Group

SOLDERING STATION 200W 1 CH 230V

Technical Specifications

Parameters and characteristics for this part

Specification	T0053419699N

Base Unit	WX1
Control/Display Type	Digital
Features	USB Port
Includes	Iron Holder
Number of Channels	1
Plug Type	Not Specified, Included
Supplied Iron, Tweezer, Handle	WXMP
Supplied Tips/Nozzles	RT3
Temperature Range [Max]	999 °F
Temperature Range [Max]	550 °C
Temperature Range [Min]	150 °F
Temperature Range [Min]	50 °C
Tip Cleaner	Scouring Pad
Type	Soldering
Voltage - Input	230 V
Voltage - Output	12 V
Wattage	200 W
Workstand	WDH51

Part	Voltage - Input	Workstand	Control/Display Type	Number of Channels	Wattage	Supplied Tips/Nozzles	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Plug Type	Includes	Features	Supplied Iron, Tweezer, Handle	Base Unit	Voltage - Output	Type	Tip Cleaner
Apex Tool Group T0053419699N	230 V	WDH51	Digital	1	200 W	RT3	999 °F	150 °F	550 °C	50 °C	Included Not Specified	Iron Holder	USB Port	WXMP	WX1	12 V	Soldering	Scouring Pad

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 960.00

General part information

SOLDERING STATION 200W 1 CH 230V

Technical documentation and resources

No documents available
