Technical Specifications
Parameters and characteristics for this part
| Specification | 31_N-SMA-50-1/1--_UE |
|---|---|
| Adapter Type | Jack to Jack |
| Body Finish | White Bronze |
| Body Material | Brass, Beryllium Copper |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | Female Socket, N Jack |
| Dielectric Material | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 77.44 | |
| 10 | $ 71.06 | |||
| 25 | $ 68.33 | |||
| 50 | $ 66.05 | |||
| 100 | $ 62.40 | |||
Description
General part information
31_N-SMA Series

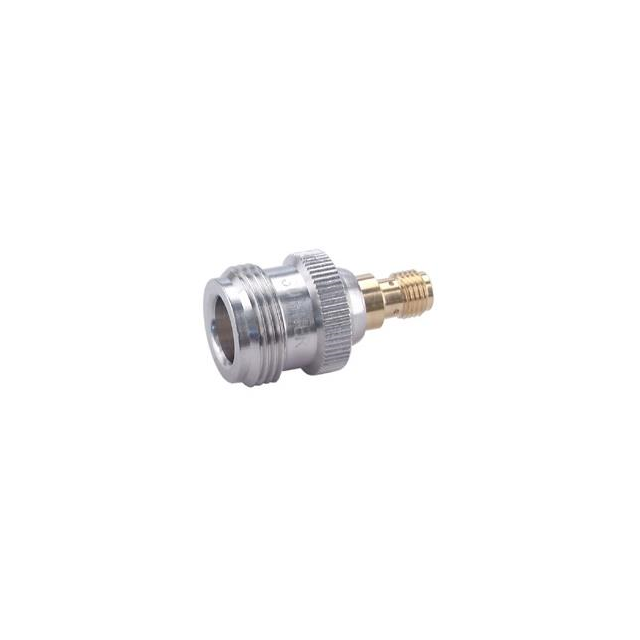

Adapter Coaxial Connector SMA Jack, Female Socket To N Jack, Female Socket 50 Ohms
