009175003702906
ActiveKyocera AVX
FYE INDUSTRIAL - FALCON / TAPE/REEL ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
009175003702906
ActiveKyocera AVX
FYE INDUSTRIAL - FALCON / TAPE/REEL ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 009175003702906 |
|---|---|
| Board-Side Pitch | 2.5 mm |
| Board-Side Pitch | 0.098 in |
| Cable Pitch | 2.5 mm |
| Cable Pitch | 0.098 in |
| Cable Termination | IDC |
| Color | White |
| Connector Type | Individual Wires |
| Contact Finish | Tin |
| Features | Feed Through |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Wire Gauge | 26 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.73 | |
| 10 | $ 0.64 | |||
| 25 | $ 0.58 | |||
| 50 | $ 0.55 | |||
| 100 | $ 0.52 | |||
| 250 | $ 0.48 | |||
| 500 | $ 0.46 | |||
| Digi-Reel® | 1 | $ 0.73 | ||
| 10 | $ 0.64 | |||
| 25 | $ 0.58 | |||
| 50 | $ 0.55 | |||
| 100 | $ 0.52 | |||
| 250 | $ 0.48 | |||
| 500 | $ 0.46 | |||
| Tape & Reel (TR) | 1000 | $ 0.38 | ||
| 2000 | $ 0.36 | |||
| 3000 | $ 0.34 | |||
| 5000 | $ 0.33 | |||
| 10000 | $ 0.31 | |||
| 25000 | $ 0.30 | |||
| Newark | Each (Supplied on Full Reel) | 1 | $ 0.39 | |
| 5000 | $ 0.38 | |||
| 10000 | $ 0.35 | |||
| 20000 | $ 0.33 | |||
| 30000 | $ 0.31 | |||
| 50000 | $ 0.29 | |||
Description
General part information
009175 Series

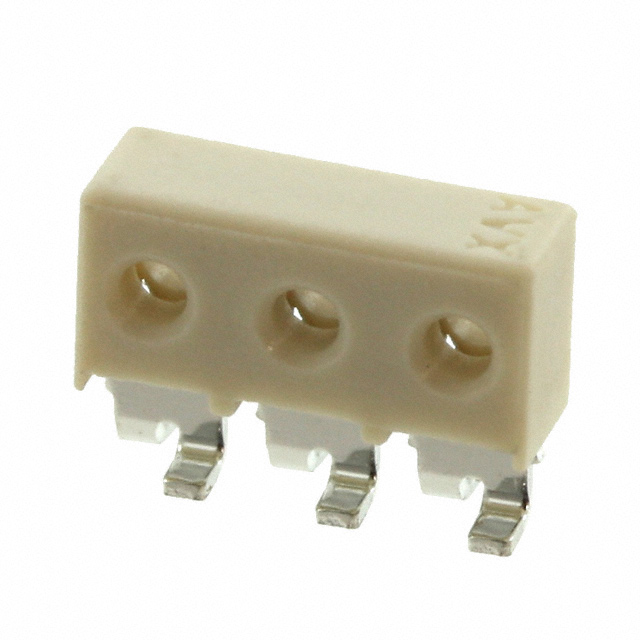

3 Position Individual Wires Connector White IDC 26 AWG Surface Mount, Right Angle
Documents
Technical documentation and resources
