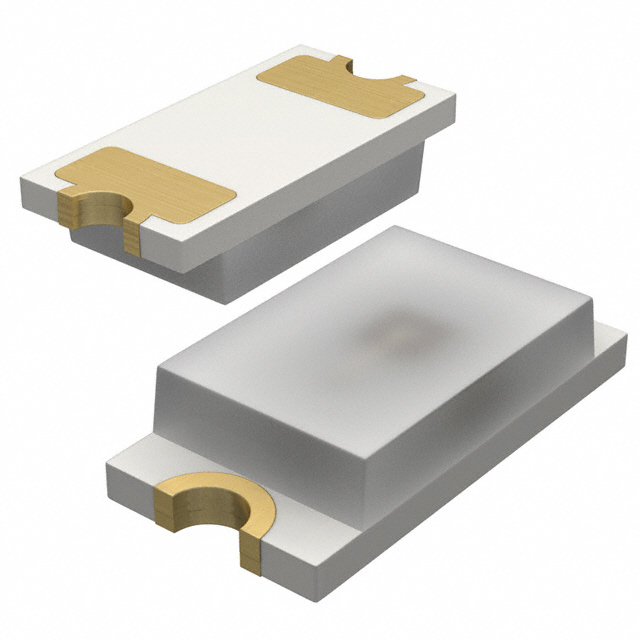

SML-E12M8WT86 - SML-E12V8WT86

SML-E12M8WT86

Active
Rohm Semiconductor

SINGLE COLOR LED, YELLOW GREEN, DIFFUSED MILKY WHITE, 1.2MM, 1.60 X 0.80 MM, 0.36 MM HEIGHT, ROHS COMPLIANT, 0603, 2 PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSML-E12x8W Series Reliability TestLED Flammability+25
SML-E12M8WT86 - SML-E12V8WT86

SML-E12M8WT86

Active
Rohm Semiconductor

SINGLE COLOR LED, YELLOW GREEN, DIFFUSED MILKY WHITE, 1.2MM, 1.60 X 0.80 MM, 0.36 MM HEIGHT, ROHS COMPLIANT, 0603, 2 PIN

Deep-Dive with AI

DocumentsSML-E12x8W Series Reliability TestLED Flammability+25

Technical Specifications

Parameters and characteristics for this part

SpecificationSML-E12M8WT86
ColorGreen
ConfigurationStandard
Current - Test20 mA
Height (Max) [Max] [z]0.46 mm
Lens ColorWhite
Lens Size [x]1.2 mm
Lens Size [y]0.8 mm
Lens StyleRectangle with Flat Top
Lens TransparencyDiffused
Millicandela Rating25 mcd
Mounting TypeSurface Mount
Package / Case0603 (1608 Metric)
Size / Dimension [x]1.6 mm
Size / Dimension [y]0.8 mm
Supplier Device Package0603
Supplier Device Package1608
Voltage - Forward (Vf) (Typ)2.2 V
Wavelength - Dominant572 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.35
10$ 0.20
100$ 0.12
500$ 0.09
1000$ 0.08
2000$ 0.08
Digi-Reel® 1$ 0.35
10$ 0.20
100$ 0.12
500$ 0.09
1000$ 0.08
2000$ 0.08
Tape & Reel (TR) 5000$ 0.07
10000$ 0.06
15000$ 0.06
25000$ 0.06
35000$ 0.06
50000$ 0.06
125000$ 0.05
NewarkEach (Supplied on Cut Tape) 1$ 0.36
10$ 0.29
25$ 0.24
50$ 0.18
100$ 0.13
250$ 0.12
500$ 0.12
1000$ 0.10

Description

General part information

SML-E12M8W Series

SML-E1 series is a small, thin surface-mount type chip LED.
