ACM3P-4-AC1-R-C
ActiveAMMETER, ACM3P SERIES, THREE PHASE, AC CURRENT, 4 DIGITS, 85 VAC TO 264 VAC
Deep-Dive with AI
Search across all available documentation for this part.
ACM3P-4-AC1-R-C
ActiveAMMETER, ACM3P SERIES, THREE PHASE, AC CURRENT, 4 DIGITS, 85 VAC TO 264 VAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ACM3P-4-AC1-R-C |
|---|---|
| Display Characters - Height [z] | 9.14 mm |
| Display Characters - Height [z] | 0.36 in |
| Display Type | LED - Red Characters |
| Features | Built In Current Transformer (Primary) |
| Measuring Range [Max] | 100 A |
| Measuring Range [Min] | 0 A |
| Measuring Type | Current (3-Phase) |
| Mounting Type | Panel Mount - Surface |
| Number of Characters Per Row | 4 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Termination Style | Screw Terminal |
| Type | Ammeter |
| Voltage - Supply [Max] | 264 VAC |
| Voltage - Supply [Min] | 85 VAC |
| Weight | 73.94 g |
| Weight | 0.163 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ACM3P-4 Series

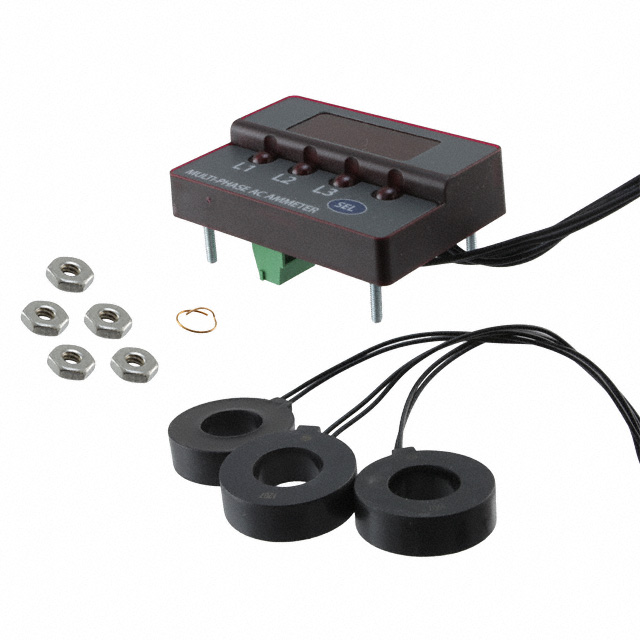

Murata Power Solutions’ ACM3P series 3-phase AC ammeters measure and display the true-rms values of 2- or 3-phase ac mains current. A front panel touch switch enables the selection of a continuous reading of any of the three phases. All ACM3P ammeters are functionally complete, with built-in L1, L2, and L3 current transformers—no other user-supplied components or hardware are required. ACM3P series AC ammeters are available with a 0-100A input range (150A peaks) and provide a resolution of 0.1 Amp. Their 85-264Vac (47-63Hz) operating supply range makes these ammeters perfect for worldwide 3-phase current monitoring applications. And, unlike conventional average-responding products, ACM3P ammeters can accurately display the true-rms values of triangle waves, square waves, and other irregularly shaped AC current waveforms, with an accuracy of ±2% of full scale
