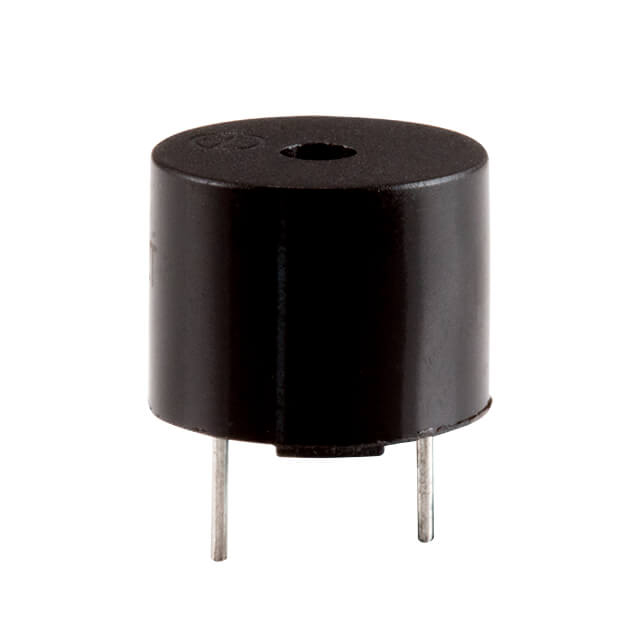

CMI-1210-92T

Active

CUI Devices

BUZZER MAGNETIC 12V 12MM TH

Search across all available documentation for this part.

Active

CUI Devices

BUZZER MAGNETIC 12V 12MM TH

Technical Specifications

Parameters and characteristics for this part

Specification	CMI-1210-92T

Current - Supply	35 mA
Driver Circuitry	Internally Driven, Indicator
Frequency	2.4 kHz
Height - Seated (Max) [Max]	0.394 in
Height - Seated (Max) [Max]	10 mm
Input Type	DC
Mounting Type	Through Hole
Operating Mode	Single Tone
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Port Location	Top
Ratings	Washable
Size / Dimension [diameter]	12 mm
Size / Dimension [diameter]	0.472 in
Sound Pressure Level (SPL)	87 dB
Technology	Magnetic
Termination	PC Pins
Voltage - Rated	12 VDC
Voltage Range [Max]	15 V
Voltage Range [Min]	7 V

Part	Sound Pressure Level (SPL)	Mounting Type	Current - Supply	Operating Mode	Operating Temperature [Max]	Operating Temperature [Min]	Driver Circuitry	Frequency	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Port Location	Input Type	Technology	Voltage Range [Min]	Voltage Range [Max]	Voltage - Rated	Ratings	Size / Dimension [diameter]	Size / Dimension [diameter]
CUI Devices CMI-1210-92T	87 dB	Through Hole	35 mA	Single Tone	85 °C	-40 °C	Indicator Internally Driven	2.4 kHz	PC Pins	0.394 in	10 mm	Top	DC	Magnetic	7 V	15 V	12 VDC	Washable	12 mm	0.472 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers Indicator, Internally Driven Magnetic 12 V 35mA 2.4kHz 87dB @ 12V, 10cm Through Hole PC Pins
