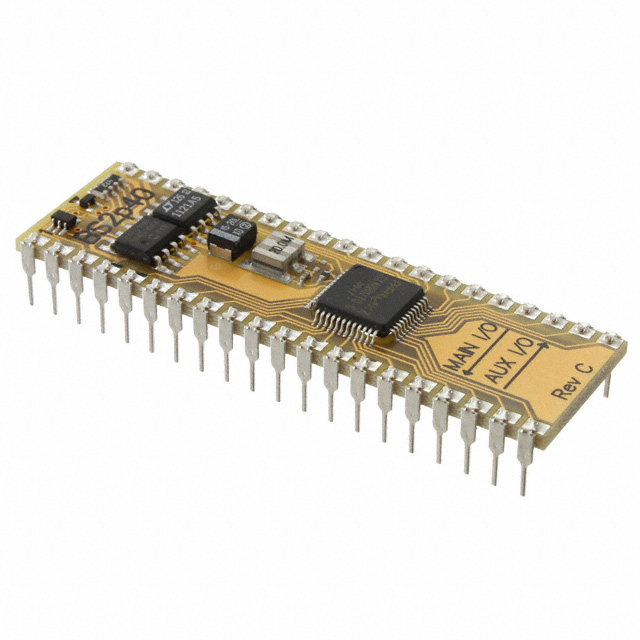

BS2P40

Obsolete

Parallax Inc.

IC MODULE SX48AC 20MHZ 38B 16KB

Search across all available documentation for this part.

Obsolete

Parallax Inc.

IC MODULE SX48AC 20MHZ 38B 16KB

Technical Specifications

Parameters and characteristics for this part

Part	Module/Board Type	Core Processor	Operating Temperature [Max]	Flash Size	RAM Size	Speed	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
Parallax Inc. BS2P40	MCU Core	SX48AC	70 °C	16 KB	38 B	20 MHz	53.3 mm	2.1 in	0.6 in	15.2 mm
Parallax Inc. BS2P24	MCU Core	SX48AC	70 °C	16 KB	38 B	20 MHz	30 mm	1.2 "	0.6 in	15 mm
Parallax Inc. BS2PX24	MCU Core	SX48AC	70 °C	16 KB	38 B	32 MHz	30 mm	1.2 "	0.6 in	15 mm
Parallax Inc. BS2PE	MCU Core	SX48AC	70 °C	32 KB	38 B	8 MHz	30 mm	1.2 "	0.6 in	15 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BASIC Stamp® Embedded Module SX48AC 20MHz 38B 16KB EEPROM

Technical documentation and resources

No documents available
