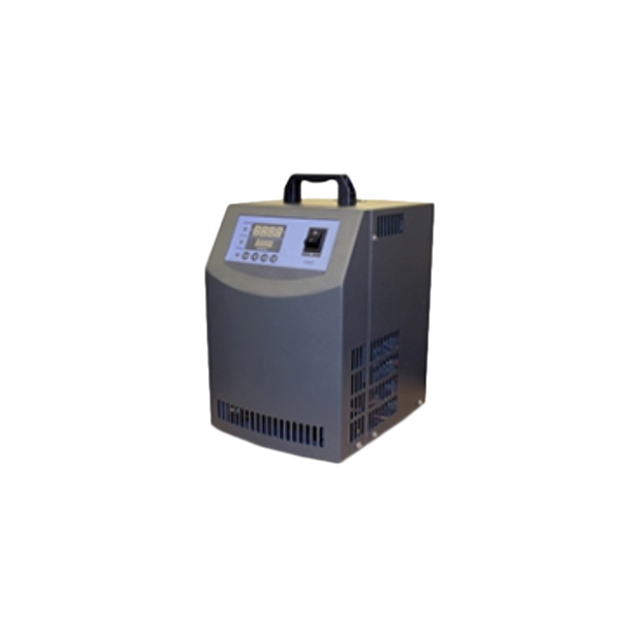

ATS-CHILL150V

Active

Advanced Thermal Solutions Inc.

RECIRCULATING CHILLERS VAPOR COMPRESSION BASED WATER CHILLER, 150W

Search across all available documentation for this part.

Active

Advanced Thermal Solutions Inc.

RECIRCULATING CHILLERS VAPOR COMPRESSION BASED WATER CHILLER, 150W

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-CHILL150V

Dimensions - Overall [x]	10.24 in
Dimensions - Overall [x]	260 mm
Dimensions - Overall [y]	9.06 in
Dimensions - Overall [y]	230 mm
Dimensions - Overall [z]	380 mm
Dimensions - Overall [z]	14.9 in
Flow Rate [Max]	2.64 GPM
Flow Rate [Max]	10 LPM
Flow Rate [Min]	1.85 GPM
Flow Rate [Min]	7 LPM
Fluid Capacity	33.8 oz
Fluid Capacity	1000 ML
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Power - Cooling	150 W
Product Type	Active, Recirculating Chiller
Voltage	220 V
Weight	22 lbs
Weight	10 kg

Recirculating Chillers Vapor Compression Based Water Chiller, 300W

Part	Power - Cooling	Flow Rate	Flow Rate	Voltage [Max]	Voltage [Min]	Fluid Capacity	Fluid Capacity	Weight	Weight	Dimensions - Overall [z]	Dimensions - Overall [y]	Dimensions - Overall [x]	Dimensions - Overall [x]	Dimensions - Overall [y]	Dimensions - Overall [z]	Operating Temperature [Max]	Operating Temperature [Min]	Product Type	Dimensions - Overall [z]	Dimensions - Overall [y]	Flow Rate [Min]	Flow Rate [Min]	Flow Rate [Max]	Flow Rate [Max]	Voltage
Advanced Thermal Solutions Inc. ATS-CHILL600V	600 W	3.96 GPM	15 LPM	220 VAC	120 VAC	152.2 oz	4500 ML	51 lbs	23.1 kg	19.3 in	9.25 in	18.7 in	475 mm	235 mm	490 mm	35 °C	5 °C	Active Recirculating Chiller
Advanced Thermal Solutions Inc. ATS-CHILL150V	150 W					33.8 oz	1000 ML	22 lbs	10 kg	14.9 in	9.06 in	10.24 in	260 mm			40 °C	0 °C	Active Recirculating Chiller	380 mm	230 mm	1.85 GPM	7 LPM	2.64 GPM	10 LPM	220 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1863.79
Sager	N/A	1	$ 2594.16

General part information

Recirculating Chillers Vapor Compression Based Water Chiller, 300W
