WR9HA1200CCP-F(R6B)

Active

GlobTek, Inc.

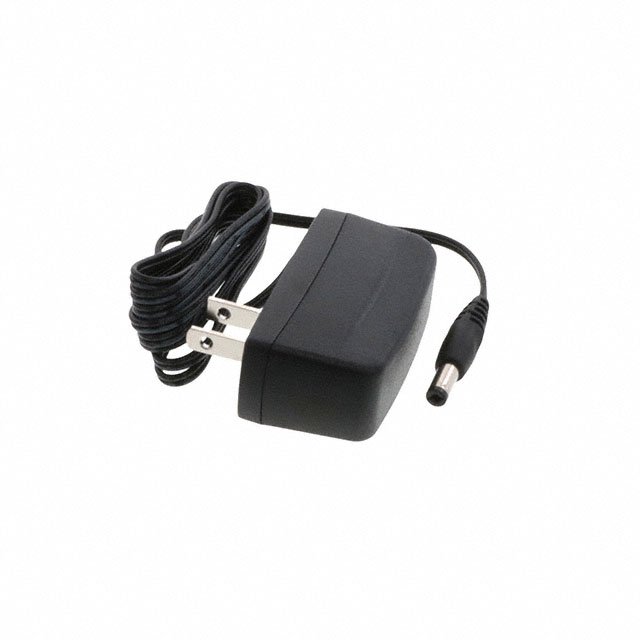

AC/DC WALL MOUNT ADAPTER 5V 6W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 5V 6W

Technical Specifications

Parameters and characteristics for this part

Specification	WR9HA1200CCP-F(R6B)

Applications	ITE (Commercial)
Approval Agency	PSE, VCCI, cULus, UKRSepro, EAC, LPS, CB
Cord Length	60.2 in
Cord Length	1.53 m
Current - Output (Max) [Max]	1.2 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	6 W
Region Utilized	North America
Size / Dimension [x]	2.62 in
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	2.02 in
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

Part	Polarization	Cord Length	Cord Length	Voltage - Output	Current - Output (Max) [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Region Utilized	Output Connector	Output Connector [diameter]	Output Connector [z]	Applications	Standard Number	Form	Efficiency	Power (Watts)	Input Connector	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	No Load Power Consumption [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Approval Agency
GlobTek, Inc. WR9HA1200CCP-F(R6B)	Positive Center	60.2 in	1.53 m	5 V	1.2 A	90 VAC	264 VAC	North America	Barrel Plug	2.1 mm 5.5 mm	11 mm	ITE (Commercial)	60950-1	Wall Mount (Class II)	Level VI	6 W	NEMA 1-15P	2.62 in	25.4 mm	2.02 in	75 mW	40 °C	0 °C	Fixed Blade	CB cULus EAC LPS PSE UKRSepro VCCI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V 6 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
