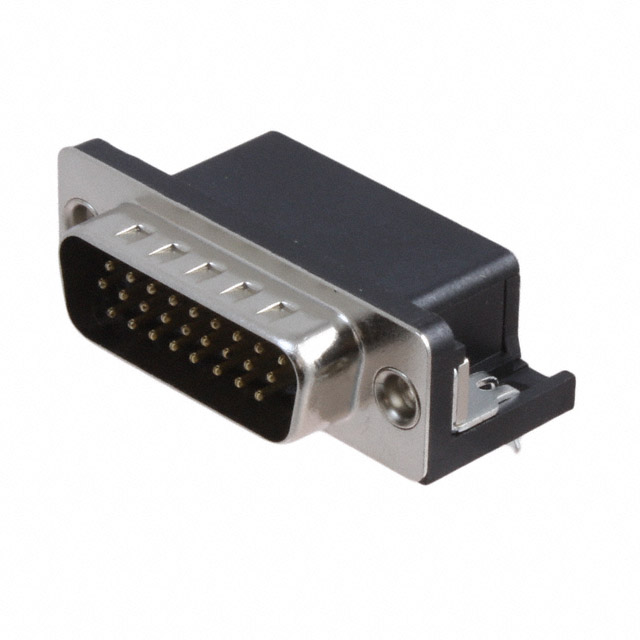

681-026-113R531

Obsolete

MH Connectors

IP66 HD 26 / -531 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Obsolete

MH Connectors

IP66 HD 26 / -531 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	681-026-113R531

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Grounding Indents, Board Lock
Flange Feature	Housing/Shell (4-40)
Ingress Protection	IP66
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	26
Number of Rows	3
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Termination	Solder

Part	Connector Style	Contact Type	Ingress Protection	Features	Backset Spacing	Backset Spacing	Dielectric Material	Contact Material	Contact Finish	Contact Finish Thickness	Color	Termination	Flange Feature	Number of Rows	Mounting Type	Material Flammability Rating	Number of Positions	Current Rating (Amps)	Shell Size, Connector Layout	Shell Size, Connector Layout	Connector Type	Shell Material, Finish
MH Connectors 681-026-113R531	D-Sub High Density	Signal	IP66	Board Lock Grounding Indents	8.89 mm	0.35 in	Polyamide (PA9T) Nylon 9T	Brass	Gold	Flash	Black	Solder	Housing/Shell (4-40)	3	Panel Mount Right Angle Through Hole	UL94 V-0	26	2 A	2	(DA A) High Density	Male Pins Plug	Nickel Plated Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position D-Sub, High Density Plug, Male Pins Connector
