ME03EA045-TE12L

Active

Kyocera AVX

45V 3A 550MV@3A SMA-FL SCHOTTKY DIODES ROHS

Search across all available documentation for this part.

Active

Kyocera AVX

45V 3A 550MV@3A SMA-FL SCHOTTKY DIODES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	ME03EA045-TE12L

Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	200 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C

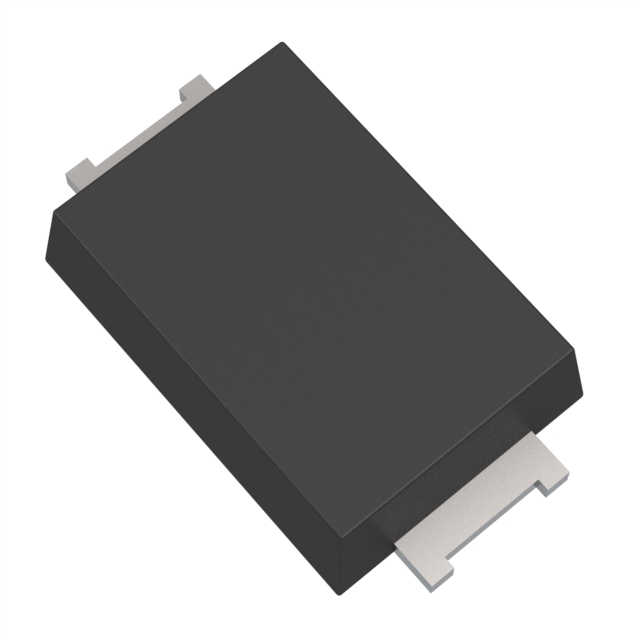

Package / Case	DO-214AC, SMA Flat Leads
Speed	200 mA, 500 ns
Supplier Device Package	SMA-FL
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	45 V
Voltage - Forward (Vf) (Max) @ If	550 mV

Part	Technology	Current - Reverse Leakage @ Vr	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type	Current - Average Rectified (Io)	Package / Case	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If
Kyocera AVX ME03EA06-TE12L	Schottky	200 µA	200 mA 500 ns	60 V	150 °C	-55 °C	Surface Mount	3 A	SOD-128	SOD-128	570 mV
Kyocera AVX ME03EA03-TE12L	Schottky	300 µA	200 mA 500 ns	30 V	150 °C	-55 °C	Surface Mount	3 A	DO-214AC SMA Flat Leads	SMA-FL	450 mV
Kyocera AVX ME03EA045-TE12L	Schottky	200 µA	200 mA 500 ns	45 V	150 °C	-55 °C	Surface Mount	3 A	DO-214AC SMA Flat Leads	SMA-FL	550 mV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 45 V 3A Surface Mount SMA-FL
