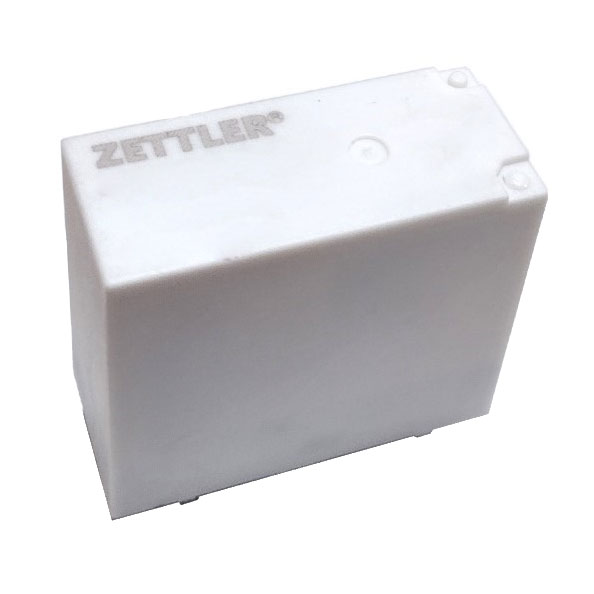

AZ7335W-2C-5DE

Active

American Zettler

RELAY GEN PURPOSE DPDT 10A 5V

Search across all available documentation for this part.

Active

American Zettler

RELAY GEN PURPOSE DPDT 10A 5V

Technical Specifications

Parameters and characteristics for this part

Specification	AZ7335W-2C-5DE

Coil Current	279.3 mA
Coil Insulation	Class F
Coil Resistance	17.9 Ohms
Coil Type	Non Latching
Coil Voltage	5 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Tin Oxide Indium Oxide (AgSnOInO)
Contact Rating (Current)	10 A
Load - Max Switching	360 W, 3000 VA
Mounting Type	Through Hole
Must Operate Voltage	3.75 VDC
Must Release Voltage	0.25 VDC
Operate Time	10 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	10 ms
Seal Rating	Sealed - Fully
Switching Voltage	277 VAC, 30 VDC
Termination Style	PC Pin

Part	Coil Resistance	Termination Style	Load - Max Switching	Operate Time	Switching Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type	Coil Current	Mounting Type	Seal Rating	Contact Material	Coil Insulation	Coil Type	Contact Form	Release Time	Must Operate Voltage	Contact Rating (Current)	Must Release Voltage	Coil Voltage
American Zettler AZ7335W-2A-6DSE	45 Ohms	PC Pin	360 W 3000 VA	10 ms	30 VDC 277 VAC	85 °C	-40 °C	General Purpose	133.3 mA	Through Hole	Sealed - Fully	Silver Tin Oxide Indium Oxide (AgSnOInO)	Class F	Non Latching	DPST-NO (2 Form A)	10 ms	4.5 VDC	10 A	0.3 VDC
American Zettler AZ7335W-2C-5DE	17.9 Ohms	PC Pin	360 W 3000 VA	10 ms	30 VDC 277 VAC	85 °C	-40 °C	General Purpose	279.3 mA	Through Hole	Sealed - Fully	Silver Tin Oxide Indium Oxide (AgSnOInO)	Class F	Non Latching	DPDT (2 Form C)	10 ms	3.75 VDC	10 A	0.25 VDC	5 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1000	$ 2.76

General part information

General Purpose Relay DPDT (2 Form C) 5VDC Coil Through Hole
