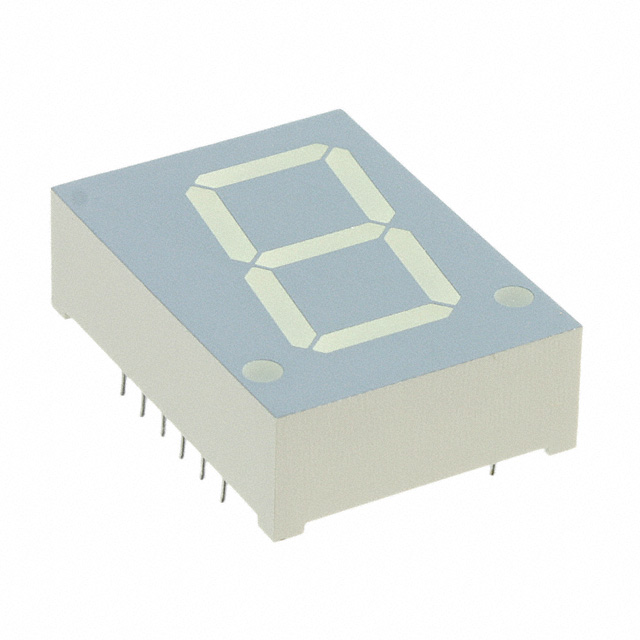

SC08-11SRWA
ObsoleteKingbright
7 SEG NUMERIC DISPLAY, SUPER BRIGHT RED, 20.32MM, ROHS COMPLIANT PACKAGE-16
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SC08-11SRWA
ObsoleteKingbright
7 SEG NUMERIC DISPLAY, SUPER BRIGHT RED, 20.32MM, ROHS COMPLIANT PACKAGE-16
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SC08-11SRWA |
|---|---|
| Color | Red |
| Common Pin | Common Cathode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 20.32 mm |
| Digit/Alpha Size | 0.8 in |
| Display Type | 7-Segment |
| Millicandela Rating | 36 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 16-DIP |
| Package / Case | 15.24 mm, 13 Leads, 0.6 in |
| Power Dissipation (Max) [Max] | 75 mw |
| Size / Dimension [x] | 1.091 in |
| Size / Dimension [x] | 27.7 mm |
| Size / Dimension [y] | 0.787 in |
| Size / Dimension [y] | 20 mm |
| Size / Dimension [z] | 8.4 mm |
| Size / Dimension [z] | 0.331 in |
| Voltage - Forward (Vf) (Typ) | 1.85 V |
| Wavelength - Peak | 660 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SC08-11 Series
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 1.85V 20mA 1.091" H x 0.787" W x 0.331" D (27.70mm x 20.00mm x 8.40mm) 16-DIP (0.600", 15.24mm), 13 Leads
