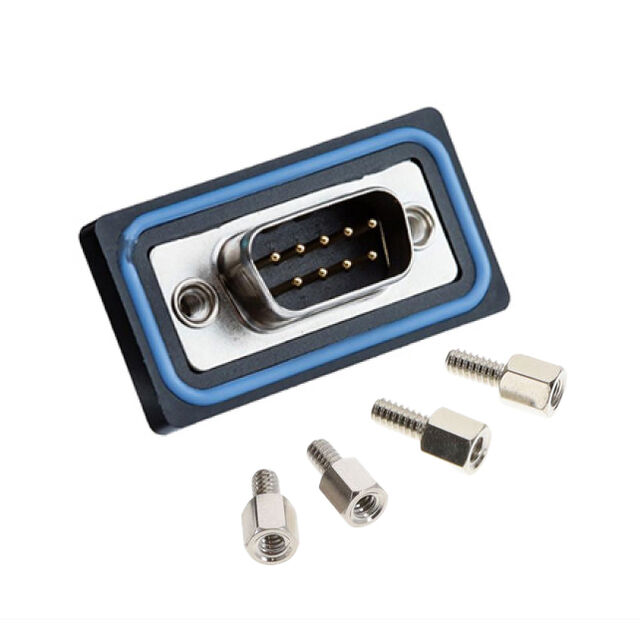

SDB-09PMMP-SB8001

Active

Amphenol LTW

CONN D-SUB PLUG 9POS R/A SLDR

Search across all available documentation for this part.

Active

Amphenol LTW

CONN D-SUB PLUG 9POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	SDB-09PMMP-SB8001

Backset Spacing	0.276 in
Backset Spacing	7 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Board Lock, Shielded, Grounding Indents
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

Part	Number of Positions	Termination	Connector Style	Contact Finish	Connector Type	Mounting Type	Color	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Flange Feature	Shell Material, Finish	Operating Temperature [Min]	Operating Temperature [Max]	Features	Ingress Protection	Contact Material	Contact Type	Current Rating (Amps)	Backset Spacing	Backset Spacing
Amphenol LTW SDB-09PMMP-SL8001	9	Solder	D-Sub	Gold	Male Pins Plug	Panel Mount Through Hole	Black	2	DE E	1	Polybutylene Terephthalate (PBT)	Female Screwlock (4-40) Mating Side	Nickel Plated Steel	-40 °C	105 ░C	Grounding Indents Shielded	IP68 - Dust Tight Waterproof	Copper Alloy	Signal	5 A
Amphenol LTW SDB-09PMMP-SB8001	9	Solder	D-Sub	Gold	Male Pins Plug	Panel Mount Right Angle Through Hole	Black	2	DE E	1	Polybutylene Terephthalate (PBT)	Female Screwlock (4-40) Mating Side	Nickel Plated Steel	-40 °C	105 ░C	Board Lock Grounding Indents Shielded	IP68 - Dust Tight Waterproof	Copper Alloy	Signal	5 A	0.276 in	7 mm
Amphenol LTW SDB-09PMMP-SR8001	9	Solder	D-Sub	Gold	Male Pins Plug	Panel Mount Right Angle Through Hole	Black	2	DE E	1	Polybutylene Terephthalate (PBT)	Female Screwlock (4-40) Mating Side	Nickel Plated Steel	-40 °C	105 ░C	Board Lock Grounding Indents Shielded	IP68 - Dust Tight Waterproof	Copper Alloy	Signal	5 A	0.276 in	7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Sub Plug, Male Pins Connector
