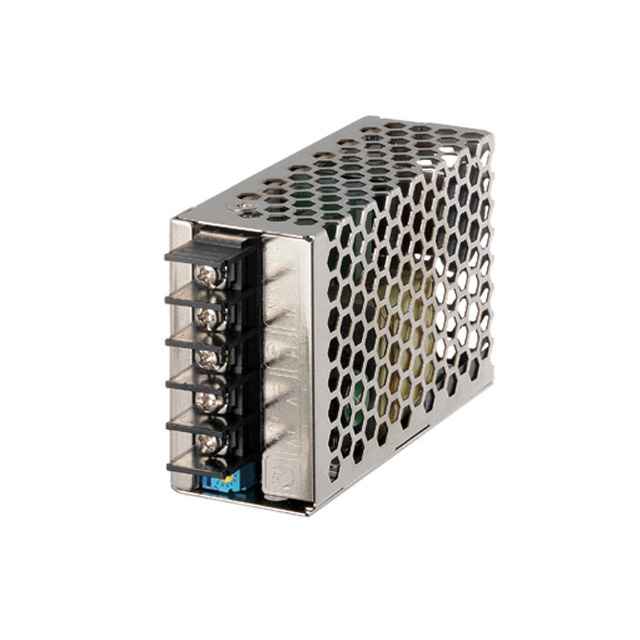

PS3X-C24AFC

Obsolete

IDEC

AC/DC DIN RAIL SUPPLY 24V 26W

Search across all available documentation for this part.

Obsolete

IDEC

AC/DC DIN RAIL SUPPLY 24V 26W

Technical Specifications

Parameters and characteristics for this part

Specification	PS3X-C24AFC

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
DC Voltage - Input (Max) [Max]	375 V
DC Voltage - Input (Min) [Min]	125 V
Efficiency	84 %
Features	Adjustable Output, Universal Input
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	26 W
Size / Dimension [x]	3.11 in
Size / Dimension [x]	79 mm
Size / Dimension [y]	1.12 in
Size / Dimension [y]	28.5 mm
Size / Dimension [z]	50.8 mm
Size / Dimension [z]	2 "
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	DC Voltage - Input (Max) [Max]	Features	Voltage - Output 1	Power (Watts)	Input Type	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Voltage - Isolation	Efficiency	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Applications	DC Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]
IDEC PS3X-C24AFC	375 V	Adjustable Output Universal Input	24 V	26 W	AC or DC	85 VAC	264 VAC	3000 V	84 %	1	-20 °C	70 °C	CE cURus TUV	ITE (Commercial)	125 V	50.8 mm	1.12 in	28.5 mm	3.11 in	2 "	79 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

AC/DC DIN RAIL SUPPLY 24V 26W
