16SEP82M+TSS

Active

Panasonic Industrial Automation Sales

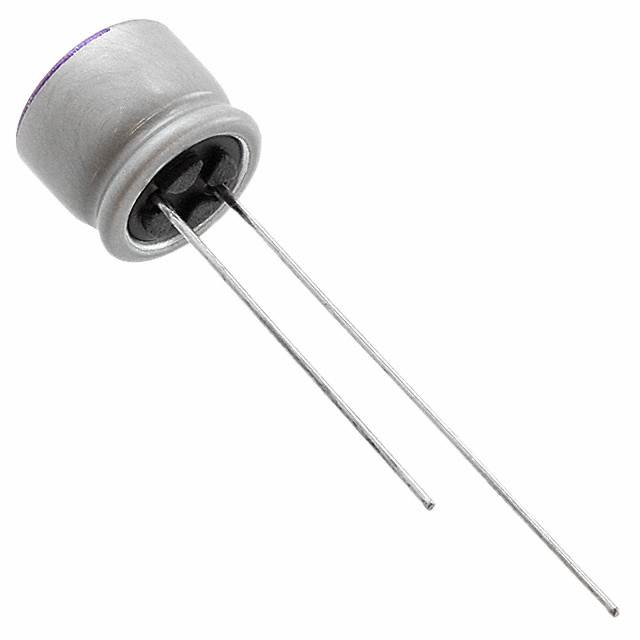

CAP ALUM POLY 82UF 20% 16V TH

Deep-Dive with AI

Search across all available documentation for this part.

16SEP82M+TSS

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 82UF 20% 16V TH

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	16SEP82M+TSS

Applications	General Purpose
Capacitance	82 µF
ESR (Equivalent Series Resistance)	40 mOhm
Height - Seated (Max) [Max]	7 mm
Height - Seated (Max) [Max]	0.276 "
Lead Spacing	3.5 mm
Lead Spacing	0.138 in
Lifetime @ Temp.	3000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Ripple Current @ High Frequency	2.12 A
Ripple Current @ Low Frequency	106 mA, 120 Hz
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Tolerance	20 %
Type	Polymer
Voltage - Rated	16 V

os-con-sep Series

Part	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Voltage - Rated	Lead Spacing	Lead Spacing	Mounting Type	Tolerance	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Type	Capacitance	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales 16SEP150M	151 mA	10 mm	0.394 in	3.02 A	16 V	5 mm	0.197 in	Through Hole	20 %	30 mOhms	8 mm	0.315 in	General Purpose	Polymer	150 µF	3000 Hrs	105 ░C	-55 °C	Radial Can
Panasonic Industrial Automation Sales 16SEP39M+TSS	81 mA	6.3 mm	0.248 in	1.62 A	16 V	2.5 mm	0.098 in	Through Hole	20 %	50 mOhms			General Purpose	Polymer	39 µF	3000 Hrs	105 ░C	-55 °C	Radial Can	0.236 in	6 mm
Panasonic Industrial Automation Sales 16SEP39M	81 mA	6.3 mm	0.248 in	1.62 A	16 V	2.5 mm	0.098 in	Through Hole	20 %	50 mOhms			General Purpose	Polymer	39 µF	3000 Hrs	105 ░C	-55 °C	Radial Can	0.236 in	6 mm
Panasonic Industrial Automation Sales 16SEP150M+T	151 mA	10 mm	0.394 in	3.02 A	16 V	5 mm	0.197 in	Through Hole	20 %	30 mOhms	8 mm	0.315 in	General Purpose	Polymer	150 µF	3000 Hrs	105 ░C	-55 °C	Radial Can
Panasonic Industrial Automation Sales 16SEP180M	182 mA	8 mm	0.315 "	3.64 A	16 V	3.5 mm	0.138 in	Through Hole	20 %	20 mOhms	12 mm	0.472 "	General Purpose	Polymer	180 çF	3000 Hrs	105 ░C	-55 °C	Radial Can
Panasonic Industrial Automation Sales 16SEP82M+TSS	106 mA 120 Hz	8 mm	0.315 "	2.12 A	16 V	3.5 mm	0.138 in	Through Hole	20 %	40 mOhm			General Purpose	Polymer	82 µF	3000 Hrs	105 ░C	-55 °C	Radial Can	0.276 "	7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.23
		10	$ 0.84
		50	$ 0.77
		100	$ 0.69
		500	$ 0.55
	Tape & Box (TB)	1000	$ 0.49
		2000	$ 0.45
		3000	$ 0.44
		5000	$ 0.42

Description

General part information

os-con-sep Series

82 µF 16 V Aluminum - Polymer Capacitors Radial, Can 40mOhm 3000 Hrs @ 105°C
